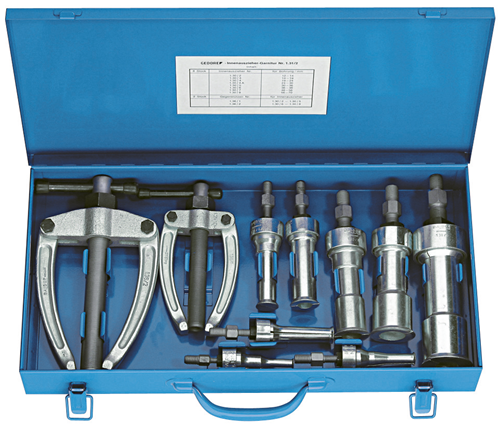

Internal extractor set 10 pieces
1.31/2
/ Code no. 8014880
Internal extractor set 10 pieces
1.31/2
/ Code no. 8014880
Price on request
Product line
EAN
4036976105445
Product description
- Sets comprise the most used extractor sizes for the removal of ball bearings, bearing races, bushings, shaft seals, etc.
- In robust sheet metal case
-
Dimensions and weights
- Total width [mm]: 240 mm
- Total height [mm]: 65 mm
- Total length [mm]: 460 mm
- Weight [kg]: 9,2 kg
-
Scope of delivery
- Parts list (Text): 1.30/2 Internal extractor 12-15 mm 1.30/3 Internal extractor 15-19 mm 1.30/4 Internal extractors 19-25 mm 1.30/4A Internal extractors 25-30 mm 1.30/5 Internal extractors 30-35 mm 1.30/6 Internal extractors 35-45 mm 1.30/7 Internal extractor 45-55 mm 1.30/8 Internal extractor 55-70 mm 1.36/1 Counter support for 1.30/0 - 1.30/5 1.36/2 Counter support for 1.30/6 - 1.30/7 131/299B Sheet metal box empty
- Contents (Qty of pieces): 10
-
Technical characteristics
- Execution: in handy sheet‑metal box
- Clamping width a2 (max.) internal pulling [mm]: 70 mm
- Clamping width a2 (min.) internal pulling [mm]: 12 mm
