Puller set with 3 hooks 160x150 mm
1.07/K-2-SE
/ Code no. 1645455
Puller set with 3 hooks 160x150 mm
1.07/K-2-SE
/ Code no. 1645455
Price on request
Product line
EAN
4036976112207
Product description

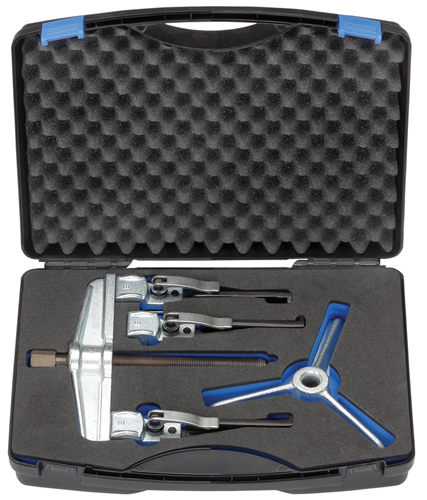

- In plastic case
- Contents: 1 spindle, 1 cross-beam each 2- and 3-arm pattern and 3 quick-release pulling legs
- 2. spindle in case 1.07/K-1-SE saves working time
-
Dimensions and weights
- Weight [kg]: 5,5 kg
-
Scope of delivery
- Parts list (Text): 106/203 Cross-beam 2-arm 220 mm 107/203 Cross-beam 3-arm 220 mm 106/B-150-SE Pulling leg with with quick release clamp 150 mm (3x) 1.2106210 Spindle 22, G 1/2", 210 mm 107/299-SE Plastic case with foam insert for 1.07/K-2-SE
- Contents (Qty of pieces): 6
-
Technical characteristics
- Execution: in plastic case
- Width of hooked foot [mm]: 40 mm
- Thickness of hooked foot at tip: 5,0 mm
- Usable depth of hooked foot d2 [mm]: 7 mm
- Hydraulic spindle optional: 1.06/HSP1
- Width across flats [mm]: 22 mm
- Usable clamping reach [mm]: 150 mm
- Clamping width (max.) external pulling [mm]: 160 mm
- Spindle thread size: G 1/2 x 210
- Tractive force (max.) [t]: 5,0
