Puller kit with 9 hooks 130x100/200/250 mm
1.07/K
/ Code no. 8117340
Puller kit with 9 hooks 130x100/200/250 mm
1.07/K
/ Code no. 8117340
Price on request
Product line
EAN
4036976104134
Product description

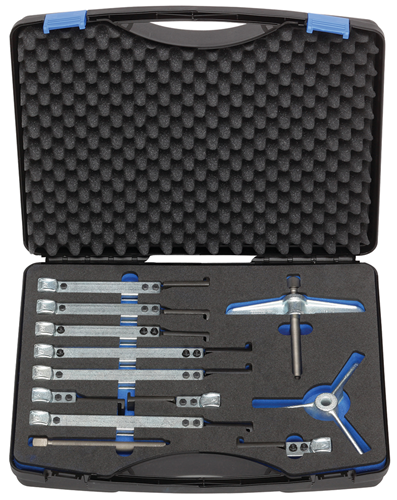

- In plastic case
- Contents: 2 spindles, 1 cross-beam each 2- and 3-arm pattern and 9 slim pulling legs in 3 lengths
- 2. spindle in case 1.07/K saves working time
- 1.07/K-2 both sides with burled inlay
-
Dimensions and weights
- Weight [kg]: 6,54 kg
-
Scope of delivery
- Parts list (Text): 106/2A03 Traverse 2-arm 260 mm 107/2A03 Cross beam 3-arm 260 mm 106/A-100-S Pull-off hook slim 100 mm (3x) 106/A-200-S Pull-off hook slim 200 mm (3x) 106/A-250-S Pull-off hook slim 250 mm (3x) E-1.1406140 Spindle 17, M14x1.5, 140 mm (2x) 107/1A99 Plastic case with foam inlay for 1.07/K
- Contents (Qty of pieces): 10
-

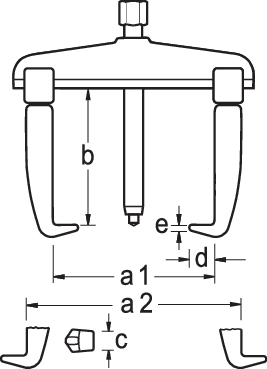

Technical characteristics
- Execution: with plastic case
- Width of hooked foot [mm]: 27 mm
- Thickness of hooked foot at tip: 3,7 mm
- Usable depth of hooked foot d2 [mm]: 7,5 mm
- Hydraulic spindle optional: -
- Width across flats [mm]: 17 mm
- Usable clamping reach: 100 / 200 / 250 mm
- Clamping width (max.) external pulling [mm]: 130 mm
- Tractive force (max.) [t]: 2,5
