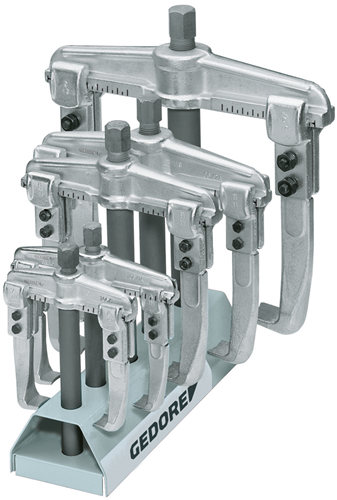

Puller set 1.06 with workshop stand
1.06/ST
/ Code no. 8111570
Puller set 1.06 with workshop stand
1.06/ST
/ Code no. 8111570
Price on request
Product line
EAN
4036976103700
Product description
- Consisting of 5 pullers in different sizes with standard or quick-release pulling hook or all-steel hook with hook brake
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- For clamping depths up to Ø 250 mm external, Ø 330 mm internal, and clamping reach up to 200 mm
-
Dimensions and weights
- Weight [kg]: 19 kg
-
Scope of delivery
- Parts list (Text): 1.06/1 Universal puller 2-arm 90x100 mm 1.06/1A Universal puller 2-arm 130x100 mm 1.06/2 Universal puller 2-arm 160x150 mm 1.06/2A Universal puller 2-arm 200x150 mm 1.06/3 Universal puller 2-arm 250x200 mm 1.06/97 Stand empty
- Contents (Qty of pieces): 5
-
Technical characteristics
- Hook brake available: Yes
- Quick release lever available: Yes
- Graduation: Yes
- Usable clamping reach: bis 200 mm
- Clamping width (max.) external pulling [mm]: 250 mm
- Clamping width a2 (max.) internal pulling [mm]: 330 mm
