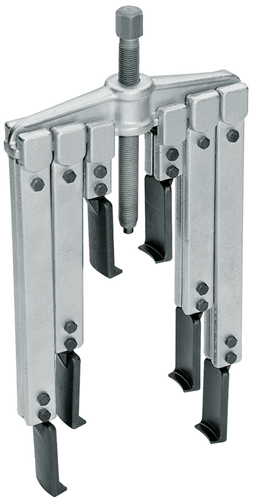

Puller kit with 6 hooks 130x100/200/250 mm
1.06/AS
/ Code no. 8001710
Puller kit with 6 hooks 130x100/200/250 mm
1.06/AS
/ Code no. 8001710
Price on request
Product line
EAN
4036976104301
Product description
- 2-arm puller, with 6 slender hooks in 3 lengths
- Particularly suitable for hard-to-reach areas
-
Dimensions and weights
- Weight [kg]: 3,4 kg
-
Scope of delivery
- Parts list (Text): 106/1A03 Cross-beam 2-arm 180 mm 106/A-100-S Pulling leg slim 100 mm (2x) 106/A-200-S Pulling leg slim 200 mm (2x) 106/A-250-S Pulling leg slim 250 mm (2x) E-1.1406140 Spindle 17, M14x1,5, 140 mm
- Contents (Qty of pieces): 8
-
Technical characteristics
- Width of hooked foot [mm]: 29,5 mm
- Thickness of hooked foot at tip: 3,7 mm
- Depth of hooked foot [mm] 3: 13,5 mm
- Usable depth of hooked foot d2 [mm]: 7,5 mm
- Hydraulic spindle optional: -
- Width across flats [mm]: 17 mm
- Graduation: Yes
- Usable clamping reach: 100 / 200 / 250
- Clamping width (max.) external pulling [mm]: 130 mm
- Spindle thread size: M 14x1,5 x 140
- Tractive force (max.) [t]: 2,5
