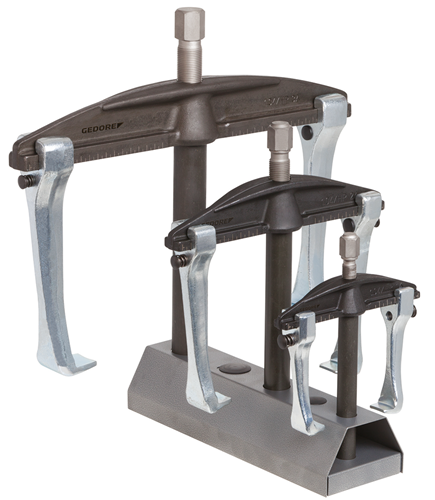

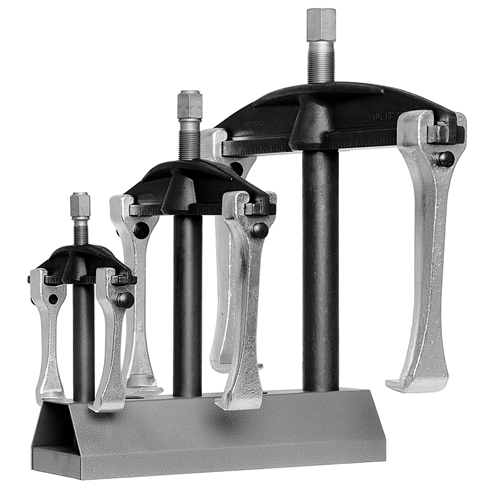

Puller set with stand 1.04/1A-1.04/3A
1.04/ST-HP-B
/ Code no. 2300044
Puller set with stand 1.04/1A-1.04/3A
1.04/ST-HP-B
/ Code no. 2300044
Price on request
Product line
EAN
4036976125320
Product description
- Consisting of 3 pullers in different sizes
- Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
- Strong drop forged pattern
- Puller hook forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Can be retrofitted with hydraulic spindle
-
Dimensions and weights
- Total length [mm]: 125 mm
- Weight [kg]: 14,48 kg
-
Scope of delivery
- Parts list (Text): 1.04/HP1A-B Puller HIGH POWER 2-arm 130x100 mm 1.04/HP2A-B Puller HIGH POWER 2-armed 200x150 mm 1.04/HP3A-B Puller HIGH POWER 2-armed 350x200 mm 1.04/97 Stand empty for 1.04 series
- Contents (Qty of pieces): 3
-
Technical characteristics
- Hook brake available: Yes
- Graduation: Yes
- reversible arms available: Yes
