2-arm high power incl. hydr. & protection.
1.04/HP2A-B-HSP1-S
/ Code no. 3461815
2-arm high power incl. hydr. & protection.
1.04/HP2A-B-HSP1-S
/ Code no. 3461815
Price on request
Product line
EAN
4010886975367
Product description
- Crosshead specially hardened and tempered, withstands high forces, load with double tensile force possible
- Strong, drop forged design
- Puller hook forged from one piece
- With hook brake - safety device against unintentional slipping of the hooks
- The hook can be moved on the crosshead at the push of a button
- Can be used as external and internal puller by repositioning the hooks
- Adjustment scale for even adjustment of the puller hooks
- Allows centric and force-optimized pull-off even at highest pull-off forces
- Grease hydraulics for controlled and force-saving pull-off
- Incl. protective foil
-
Dimensions and weights
- Total width [mm]: 300 mm
- Total height [mm]: 200 mm
- Total length [mm]: 600 mm
- Weight [kg]: 6 kg
-
Scope of delivery

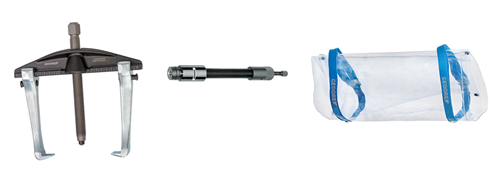

- Parts list (Text): 1.04/HP2A-B Puller HIGH POWER 2-arm span width 200 mm x span depth 150 mm 1.06/HSP1 Hydraulic pressure spindle for 1/2" thread, 10 t max.load 5.10 Safety cover 510 mm x 915 mm
- Contents (Qty of pieces): 3
-
Technical characteristics
- Number of arms: 2
- Load of the entire puller (max.) [t]: 10 t
- Hook can be moved parallel: Yes
- Hook brake available: Yes
- Width of hooked foot [mm]: 27,5 mm
- Hook foot thickness at the tip 2 e1 [mm]: 10,0 mm
- Thickness of hooked foot at tip: 3,5 mm
- Depth of hooked foot [mm] 3: 34 mm
- Usable depth of hooked foot d2 [mm]: 22,5 mm
- Hydraulic spindle: 1.06/HSP1
- Hydraulic spindle available: Yes
- Width across flats [mm]: 22, 12 & 32 mm
- Graduation: Yes
- Usable clamping reach: 150 / 70 mm
- Usable clamping reach [mm]: 159 mm
- Clamping width (max.): 202 mm
- Clamping width (min.): 62 mm
- Clamping width (max.) external pulling [mm]: 202 mm
- Clamping width a2 (max.) internal pulling [mm]: 252 mm
- Clamping width a2 (min.) internal pulling [mm]: 113 mm
- Spindle thread size: 1/2"
- Exchangeable spindle tip: Yes
- reversible arms available: Yes
- Tractive force (max.) [t]: 10
