Battery-terminal puller 3-arm 70x70 mm
1.19/01
/ Code no. 1657046

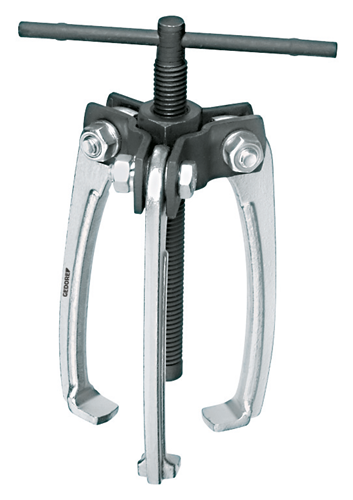

Battery-terminal puller 3-arm 70x70 mm
1.19/01
/ Code no. 1657046
Price on request
Product line
EAN
4036976112375
Product description
- The tried and tested range for economical bearing removal
- Can also be used with sliding hammer No. 1.35/1A
-
Dimensions and weights
- Weight [kg]: 0,3 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

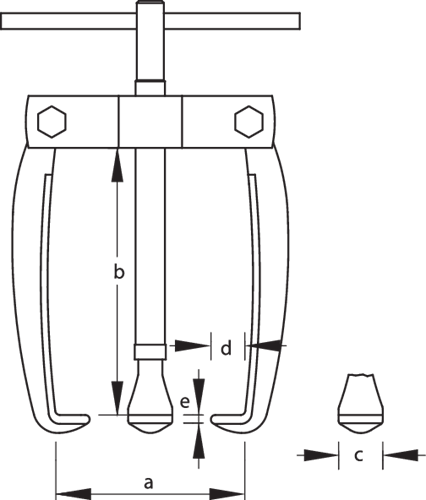

Technical characteristics
- Number of arms: 3
- Width of hooked foot [mm]: 12 mm
- Thickness of hooked foot at tip: 3,0 mm
- Usable depth of hooked foot d2 [mm]: 10 mm
- Usable clamping reach [mm]: 70 mm
- Clamping width (max.) external pulling [mm]: 70 mm
- Spindle thread size: M 10 x 115
- Tractive force (max.) [t]: 1
