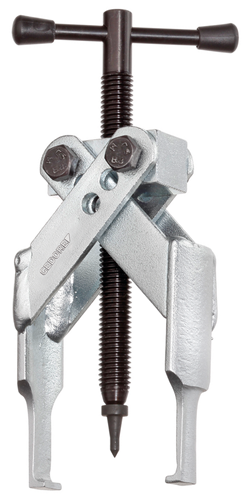

Puller 2-arm XS legs 80x85 mm

1.23/1XS / Code no. 2018578

Puller 2-arm XS legs 80x85 mm - 2018578 (1)

Puller 2-arm XS legs 80x85 mm - 2018578 (2)

Puller 2-arm XS legs 80x85 mm - 2018578 (3)

Puller 2-arm XS legs 80x85 mm - 2018578 (1) (Thumbnail)

Puller 2-arm XS legs 80x85 mm - 2018578 (2) (Thumbnail)

Puller 2-arm XS legs 80x85 mm - 2018578 (3) (Thumbnail)

Puller 2-arm XS legs 80x85 mm

1.23/1XS / Code no. 2018578

Price on request

BUY ONLINE Find A Dealer

Product line

EAN 4036976124323

Product description

Very slim forged legs
Particularly suitable for space conditions that are difficult to access, e.g. in the electric motor area
The legs grip automatically

Dimensions and weights
- Weight [kg]: 0,355 kg
Scope of delivery
- Contents (Qty of pieces): 1

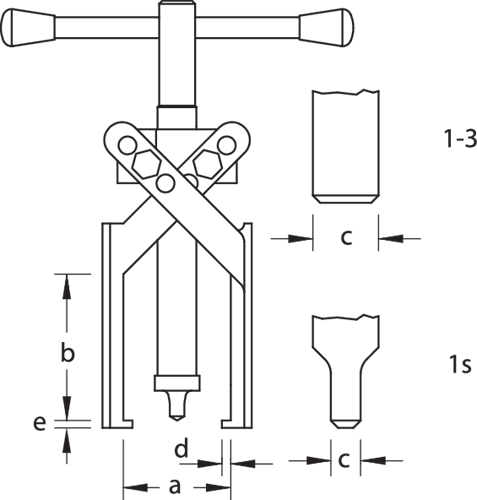

Technical characteristics
- Number of arms: 2
- Width of hooked foot [mm]: 9 mm
- Thickness of hooked foot at tip: 2,0 mm
- Usable depth of hooked foot d2 [mm]: 3,5 mm
- automatic pressing: Yes
- Usable clamping reach [mm]: 85 mm
- Clamping width (max.) external pulling [mm]: 80 mm
- Spindle thread size: M 10x1,5 x 100
- Tractive force (max.) [t]: 0.7
