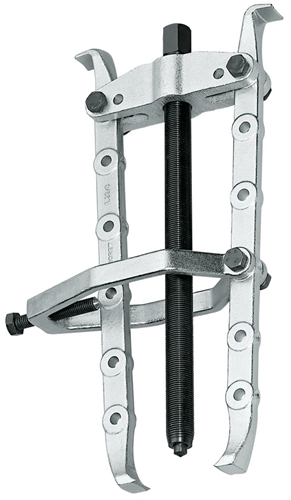

Puller with clamping yoke 110x170 mm
1.22/1
/ Code no. 8009020
Puller with clamping yoke 110x170 mm
1.22/1
/ Code no. 8009020
Price on request
Product line
EAN
4036976104912
Product description
- Double sided usable hooks
- Especially suitable for separating and pulling off flush fitting parts
- Particularly economical due to the multiple adjustment possibilities of the clamping depth
-
Dimensions and weights
- Weight [kg]: 2,2 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of arms: 2
- reversible hooks: Yes
- Width of hooked foot [mm]: 25 mm
- Thickness of hooked foot at tip: 3,5 mm
- Usable depth of hooked foot d2 [mm]: 14 mm
- Hydraulic spindle optional: -
- Width across flats [mm]: 19 mm
- Usable clamping reach [mm]: 170 mm
- Clamping width (max.) external pulling [mm]: 110 mm
- Spindle thread size: M 18x1,5 x 200
- Tractive force (max.) [t]: 5
