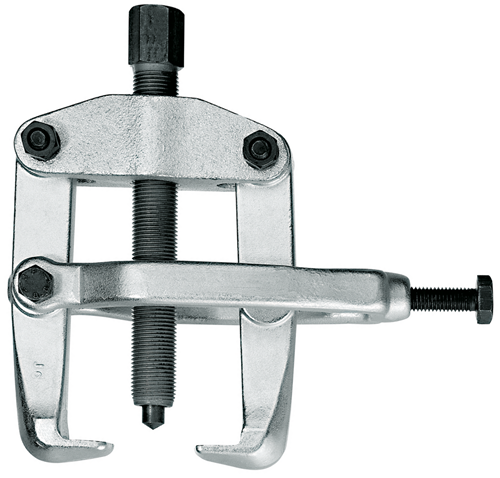

Puller with clamping yoke 90x100 mm
1.20/2
/ Code no. 8008130
Puller with clamping yoke 90x100 mm
1.20/2
/ Code no. 8008130
Price on request
Product line
EAN
4036976104837
Product description
- This puller is mainly used for pulling steering levers on cars and trucks
- The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position
-
Dimensions and weights
- Weight [kg]: 1,7 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

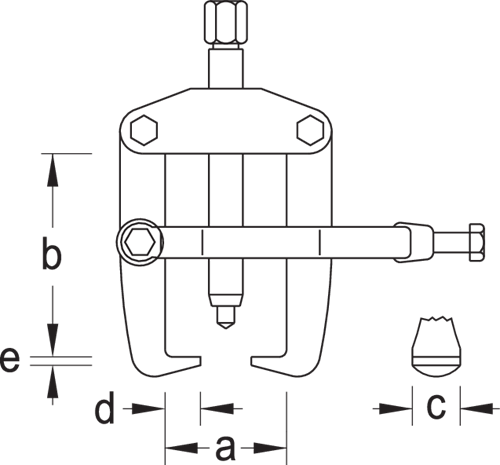

Technical characteristics
- Number of arms: 2
- Width of hooked foot [mm]: 24 mm
- Thickness of hooked foot at tip: 3,0 mm
- Usable depth of hooked foot d2 [mm]: 15 mm
- Hydraulic spindle optional: -
- Width across flats [mm]: 19 mm
- Usable clamping reach [mm]: 100 mm
- Clamping width (max.) external pulling [mm]: 90 mm
- Spindle thread size: M 18x1,5 x 130
- Tractive force (max.) [t]: 5
