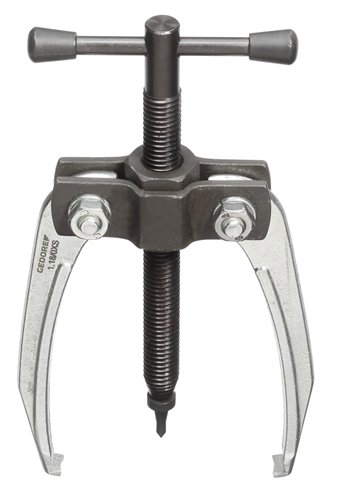

Puller 2-arm XS legs 50x70 mm
1.18/0XS
/ Code no. 2018594
Puller 2-arm XS legs 50x70 mm
1.18/0XS
/ Code no. 2018594
Price on request
Product line
EAN
4036976124309
Product description
- Very slim forged legs
- Particularly suitable for space conditions that are difficult to access, e.g. in the electric motor area
-
Dimensions and weights
- Weight [kg]: 0,26 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics

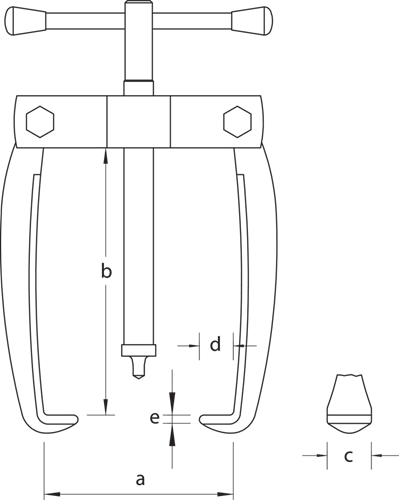

- Number of arms: 2
- Width of hooked foot [mm]: 8 mm
- Thickness of hooked foot at tip: 2,0 mm
- Usable depth of hooked foot d2 [mm]: 3 mm
- Usable clamping reach [mm]: 70 mm
- Clamping width (max.) external pulling [mm]: 50 mm
- Spindle thread size: M 10x1,5 x 100
- Tractive force (max.) [t]: 0.5
