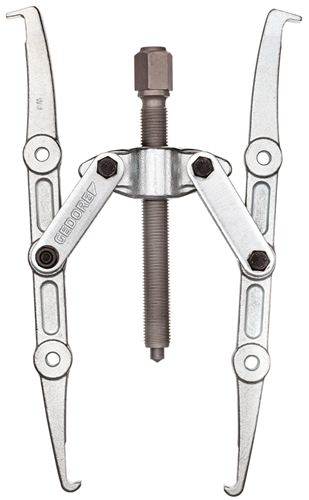

Fan puller with 2 arms for holes from Ø 10 mm 150x200 mm
1.14/1L
/ Code no. 8005110
Fan puller with 2 arms for holes from Ø 10 mm 150x200 mm
1.14/1L
/ Code no. 8005110
Price on request
Product line
EAN
4036976104554
Product description
- Especially slim hooks, can be used on both sides, with triple adjustment of the clamping depth
- The wide or narrow hook ends, which can be used on both sides, press themselves automatically when loaded
- For use on fans with 2-holes up from Ø 10 mm
-
Dimensions and weights
- Weight [kg]: 0,9 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of arms: 2
- Width of hooked foot: 10 mm
- Width of hooked foot [mm]: 6,6 mm
- Hook foot thickness at the tip 2: 2 mm
- Thickness of hooked foot at tip: 1,0 mm
- Depth of hooked foot [mm] 3: 10 mm
- Total depth of hooked foot f2 [mm]: 16,5 mm
- Usable depth of hooked foot d2 [mm]: 6 mm
- Width across flats [mm]: 17 mm
- automatic pressing: Yes
- Usable clamping reach: 100-200
- Clamping width (max.) external pulling [mm]: 150 mm
- Spindle thread size: M 14x1,5 x 155
- Use: for cooling fans with 2-hole from 10 mm hole diameter
- Tractive force (max.) [t]: 1
