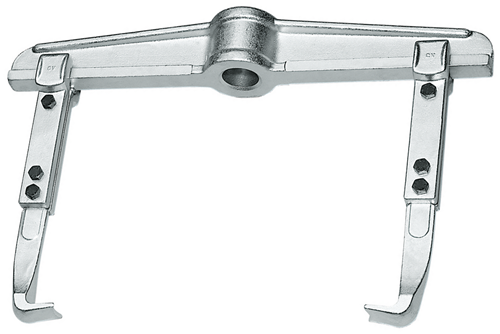

Puller for hydraulic work tool 1.50 520x200 mm
1.06/40
/ Code no. 8112620
Puller for hydraulic work tool 1.50 520x200 mm
1.06/40
/ Code no. 8112620
Price on request
Product line
EAN
4036976103755
Product description
- For the fast and damage-free removal of pulleys, wheels, ball bearings, etc.
- Robust pattern, designed for rigidity and heavy duty use
- Can be used as external and internal puller by repositioning the legs
- The reach may be increased both by using pulling legs in special lengths, and by using extensions
-
Dimensions and weights
- Weight [kg]: 10,94 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of arms: 2
- Width of hooked foot [mm]: 36 mm
- Thickness of hooked foot at tip: 6,5 mm
- Usable clamping reach [mm]: 200 mm
- Clamping width (max.) external pulling [mm]: 520 mm
- Clamping width a2 (max.) internal pulling [mm]: 600 mm
- Clamping width a2 (min.) internal pulling [mm]: 185 mm
- Tractive force (max.) [t]: 10
