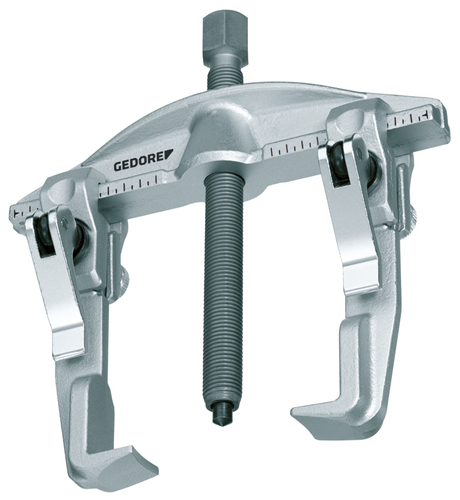

Universal puller 2-arm 200x150 mm
1.04/2A
/ Code no. 1307827
Universal puller 2-arm 200x150 mm
1.04/2A
/ Code no. 1307827
Price on request
Product line
EAN
4036976107111
Product description
- For the safe and quick removal of pulleys, wheels, ball bearings, etc.

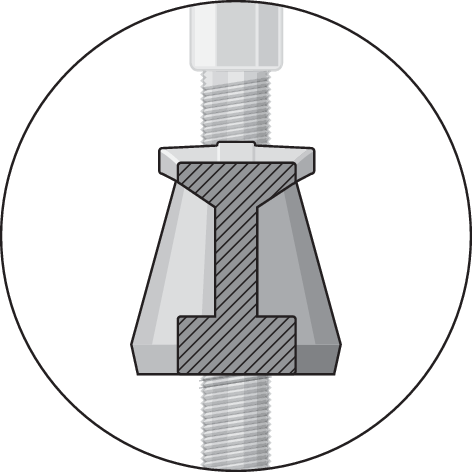

- Strong, ergonomically shaped cross beam with bending moment reinforcement
- Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work

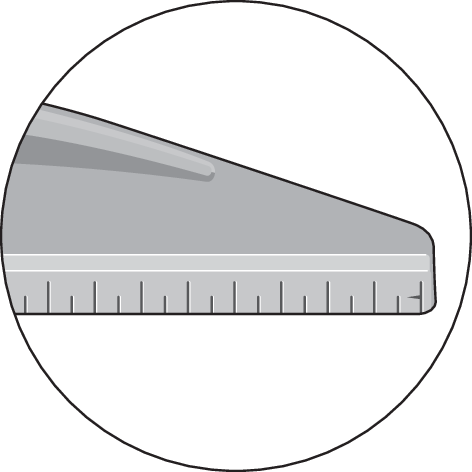

- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required

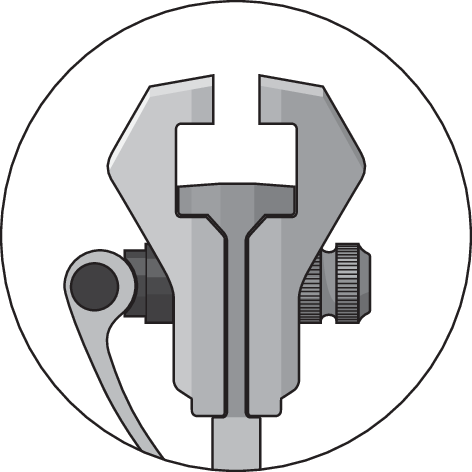

- The quick-action adjustment feature supports the energy-saving and fast operation
- Exchangeable spindle tip (ball or tip)
- Can be retrofitted with hydraulic spindle
-
Dimensions and weights
- Weight [kg]: 3,4 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of arms: 2
- Number of hooks: 2
- Execution: 2‑arm
- Load of the entire puller (max.) [t]: 5 t
- Hook can be moved parallel: Yes
- Width of hooked foot [mm]: 30 mm
- Thickness of hooked foot at tip: 3,5 mm
- Usable depth of hooked foot d2 [mm]: 18 mm
- Hydraulic spindle optional: 1.06/HSP1
- Width across flats [mm]: 22 mm
- Quick release lever available: Yes
- Graduation: Yes
- Usable clamping reach [mm]: 150 mm
- Clamping width (max.) external pulling [mm]: 200 mm
- Clamping width a2 (max.) internal pulling [mm]: 260 mm
- Clamping width a2 (min.) internal pulling [mm]: 110 mm
- Spindle holder: G1/2"
- Spindle Thrust piece type: Kugel & Spitze
- Spindle thread size: G1/2x210mm
- Spindle Thread length (usable) [mm].: 210 mm
- Spindle Surface coating: Nitro-carburated
- Spindle Width across flats: 22 mm
- Exchangeable spindle tip: Yes
- reversible arms available: Yes
- Use: For removing drive pulleys, wheels, ball bearings etc.
- Tractive force (max.) [t]: 5
