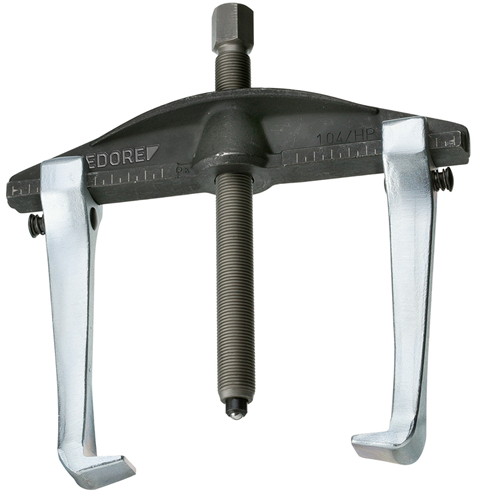

Universal puller HIGH POWER 2-armed 130 x 100 mm
1.04/HP1A-B
/ Code no. 1981145
Universal puller HIGH POWER 2-armed 130 x 100 mm
1.04/HP1A-B
/ Code no. 1981145
Price on request
Product line
EAN
4036976121773
Product description

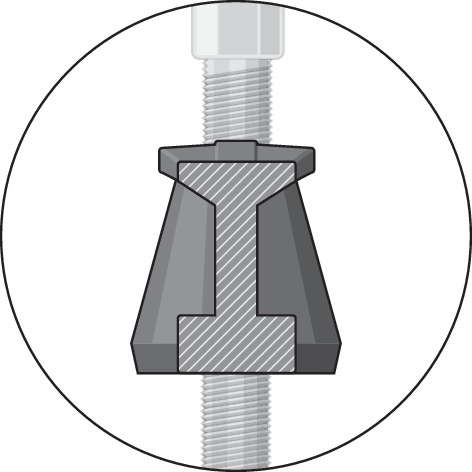

- Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
- Strong drop forged pattern

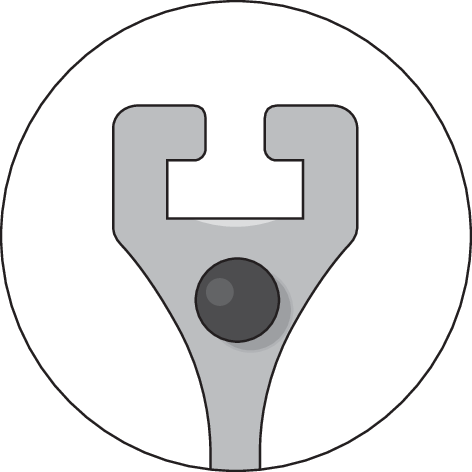

- Puller hook forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
-
Dimensions and weights
- Weight [kg]: 1,2 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of arms: 2
- Number of hooks: 2
- Execution: 2‑arm
- Load of the entire puller (max.) [t]: 5 t
- Hook can be moved parallel: Yes
- Hook brake available: Yes
- Width of hooked foot [mm]: 22 mm
- Thickness of hooked foot at tip: 3,0 mm
- Usable depth of hooked foot d2 [mm]: 15 mm
- Hydraulic spindle optional: -
- Width across flats [mm]: 17 mm
- Graduation: Yes
- Usable clamping reach [mm]: 100 mm
- Clamping width (max.) external pulling [mm]: 130 mm
- Clamping width a2 (max.) internal pulling [mm]: 170 mm
- Clamping width a2 (min.) internal pulling [mm]: 70 mm
- Spindle holder: M14x1,5mm
- Spindle Thrust piece type: Kugel & Spitze
- Spindle thread size: M14x1,5x140mm
- Spindle Thread length (usable) [mm].: 140 mm
- Spindle Surface coating: Nitro-carburated
- Spindle Width across flats: 17 mm
- Exchangeable spindle tip: Yes
- reversible arms available: Yes
- Use: For removing drive pulleys, wheels, ball bearings etc.
- Tractive force (max.) [t]: 5
