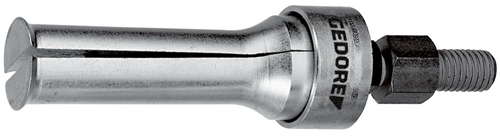

Internal extractor 30-36 mm
1.30/5
/ Code no. 8013640
Internal extractor 30-36 mm
1.30/5
/ Code no. 8013640
Price on request
Product line
EAN
4036976105339
Product description
- For extremely-tightly-packed ball bearings, bearing races, bushings, and shaft seals Simmering®
- Operation:

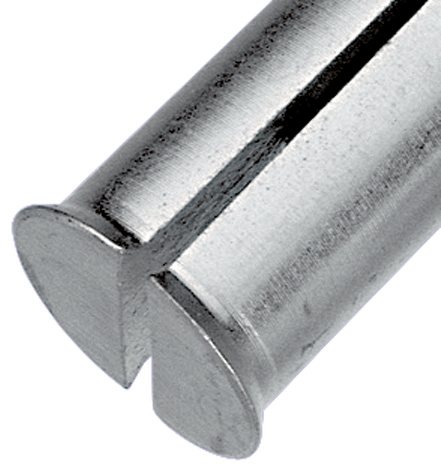

- The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace is then added. Both feet must be aligned parallel to the spindle to ensure rigidity.
- The design can vary from the image
- Can be used with either sliding hammer or counter-support brace
-
Dimensions and weights
- Total width [mm]: 35 mm
- Total height [mm]: 35 mm
- Total length [mm]: 135 mm
- Weight [kg]: 0,39 kg
- Spread range: 30-35
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Connecting thread: M10
- Support: 1.36/1
- Slide Hammer: 1.35/2
- Width across flats [mm]: 13 mm
