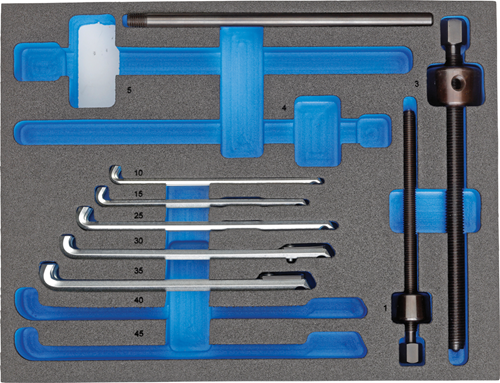

Ball bearing extractor set in i-BOXX 72 module
1101 CT-1.29/1K
/ Code no. 2964414
Ball bearing extractor set in i-BOXX 72 module
1101 CT-1.29/1K
/ Code no. 2964414
Price on request
Product line
EAN
4010886947777
Product description
- Ball bearing extractor set for more than 30 ball bearings
- For removing ball bearings that are both on a shaft and in a housing
- Non-destructive removal of deep-groove ball bearings without dismantling the shaft; no necessity to drill open the bearing cage (no chippings)
- With Check-Tool insert for quick check of tool completeness
- Insert can be used in drawers with minimum dimensions 340 x 260 x 60 mm
-
Dimensions and weights
- Total width [mm]: 367 mm
- Total length [mm]: 316 mm
- Weight [kg]: 3,27 kg
-
Scope of delivery
- Parts list (Text): 2 Heads with spindle No. 1.29/1 + 1.29/3 5 Heads with spindle No. 1.29/10 - 1.29/35 1 Plug-in handle No. 1.29/0
- Contents (Qty of pieces): 25
-
Technical characteristics
- Use: for ball bearings No. 6000 6001 6002 6003 6005 6006 6007 6008 6009 6010 6011 6012 6200 6201 6202 6203 6204 6205 6206 6207 6300 6301 6302 6303 6304 6305 6306 6307 6403 6404
