Ball bearing extractor set in i-BOXX 72
1101-1.29/3K
/ Code no. 2964392
Ball bearing extractor set in i-BOXX 72
1101-1.29/3K
/ Code no. 2964392
Price on request
Product line
EAN
4010886947746
Product description
- Ball bearing extractor set for more than 40 ball bearings
- For removing ball bearings that are both on a shaft and in a housing
- Non-destructive removal of deep-groove ball bearings without dismantling the shaft; no necessity to drill open the bearing cage (no chippings)

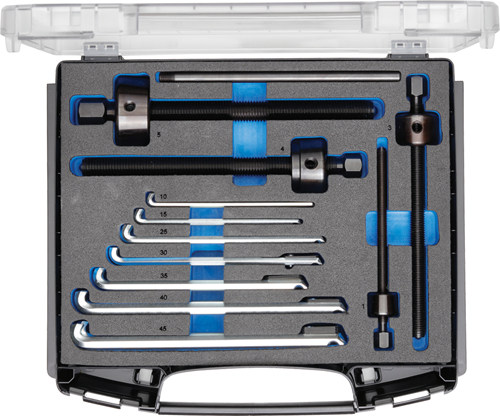

- With Check-Tool insert for quick check of tool completeness
- Insert can be used in drawers with minimum dimensions 340 x 260 x 60 mm
- In GEDORE i-BOXX® 72 No. 1101 L
- Dimensions: W 367 x D 316 x H 72 mm
-
Dimensions and weights
- Total width [mm]: 367 mm
- Total height [mm]: 72 mm
- Total length [mm]: 316 mm
- Weight [kg]: 5,78 kg
-
Scope of delivery

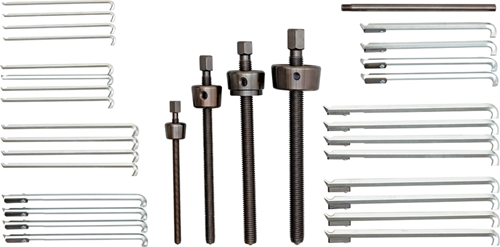

- Parts list (Text): 129/104 head129.106 spindle a/f 14 mm, M10x1.5, 160 mm129/304 head129.306 spindle a/f 17 mm, M14x2.0, 210 mm129/404 head129.406 spindle a/f 19 mm, M18x2.5, 230 mm129/504 head129.506 spindle a/f 22 mm, M20x2.5, 235 mm129/10 puller leg 1 pc. 140 mm (4x)129/15 puller leg 1 pc. 140 mm (4x)129/25 puller leg 1 pc. 170 mm (4x)129/30 puller leg 1 pc. 178 mm with 3 spacers (4x)129/35 puller leg 1 pc. 178 mm with 5 spacers (4x)129/40 puller leg 1 pc. 226 mm with 5 spacers (4x)129/45 puller leg 1 pc. 226 mm with 11 spacers (4x)1.29/0 burnished handleEI-1101 CT-1.29/3K foam insert i-BOXX 72, empty1101 L GEDORE i-BOXX 72 empty
- Contents (Qty of pieces): 37
-
Technical characteristics
- Use: 6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6300 6301 6302 6303 6304 6305 6306 6307 6308 6309 6310 6311 6403 6404 6405 6406 6407
