Ball bearing extractor set in i-BOXX 72
1101-1.29/1K
/ Code no. 2963485
Ball bearing extractor set in i-BOXX 72
1101-1.29/1K
/ Code no. 2963485
Price on request
Product line
EAN
4010886947760
Product description
- Ball bearing extractor set for more than 30 ball bearings
- For removing ball bearings that are both on a shaft and in a housing
- Non-destructive removal of deep-groove ball bearings without dismantling the shaft; no necessity to drill open the bearing cage (no chippings)

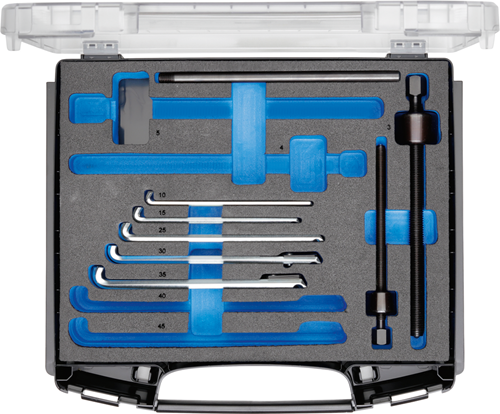

- With Check-Tool insert for quick check of tool completeness
- Insert can be used in drawers with minimum dimensions 340 x 260 x 60 mm
- In GEDORE i-BOXX® 72 No. 1101 L
- Dimensions: W 367 x D 316 x H 72 mm
-
Dimensions and weights
- Total width [mm]: 367 mm
- Total height [mm]: 72 mm
- Total length [mm]: 316 mm
- Weight [kg]: 3,05 kg
-
Scope of delivery

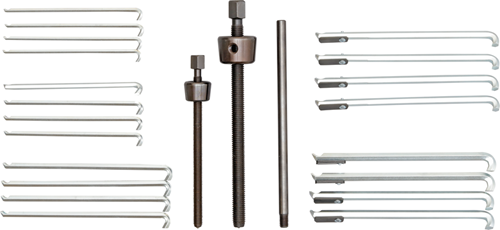

- Parts list (Text): 129/104 Head 129.106 Spindle 14, M10x1,5, 160 mm 129/304 Head 129.306 Spindle 17, M14x2,0, 210 mm 129/404 Head 129.406 Spindle 19, M18x2,5, 230 mm 129/504 Head 129.506 Spindle 22, M20x2,5, 235 mm 129/10 Pulling leg 1 pcs. 140 mm (4x) 129/15 Pulling leg 1 pcs. 140 mm (4x) 129/25 Pulling leg 1 pcs. 170 mm (4x) 129/30 Pulling leg 1 pcs. 178 mm with 3 spacers (4x) 129/35 Pulling leg 1 pcs. 178 mm with 5 spacers (4x) 129/40 Pulling leg 1 pcs. 226 mm with 5 spacers (4x) 129/45 Pulling leg 1 pcs. 226 mm with 11 spacers (4x) 1.29/0 Plug-in handle burnished 42 2 (5/64AF) Offset screwdriver 129/193 Table bearing hook head overview EI-1101 CT-1.29/3K Foam insert i-BOXX 72, empty 1101 L GEDORE i-BOXX 72 empty
- Contents (Qty of pieces): 25
-
Technical characteristics
- Use: for ball bearings No. 6000 6001 6002 6003 6005 6006 6007 6008 6009 6010 6011 6012 6200 6201 6202 6203 6204 6205 6206 6207 6300 6301 6302 6303 6304 6305 6306 6307 6403 6404
