Ball bearing puller PLUS size 1+2
1.92/12
/ Code no. 1553550
Ball bearing puller PLUS size 1+2
1.92/12
/ Code no. 1553550
Price on request
Product line
EAN
4036976112030
Product description

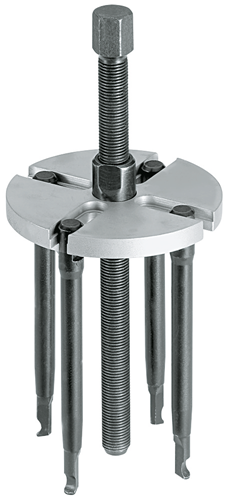

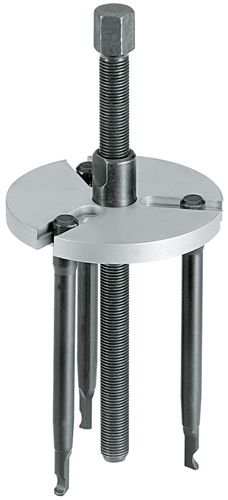

- Using the GEDORE ball bearing extractor, the removal of shaft-mounted ball bearings in a housing is now possible without any problems
- The design allows a PLUS in effectiveness and productivity through a maximum of functionality in combination with simplified handling
- This tool is easy to use: The legs are fixed in the slot
- The self-locking arrangement means that the force applied is 100 % utilised
- Secure at all times against slipping off - and a straight pulling force for precise working
- Suitable for more than 40 standard ball bearings up to 6311
- 1.92/12 for bearings: 6011-6012, 6206-6212, 6305-6311, 6403-6407
-
Dimensions and weights
- Weight [kg]: 7,6 kg
-

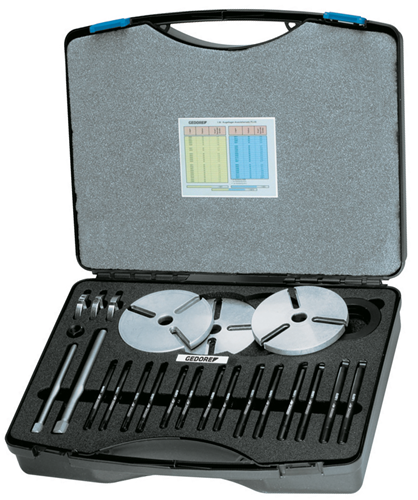

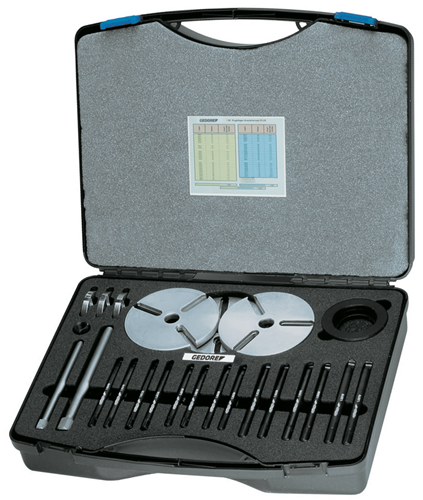

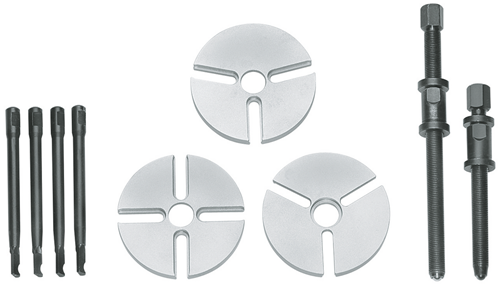

Scope of delivery
- Parts list (Text): Bearing hook head size 60001.92/10192/1-7 60011.92/10192/1-4 60021.92/10192/1-3 60031.92/10192/1-4 60041.92/30192/1-3 60051.92/30192/1-3 60061.92/30192/1-3 60071.92/40192/1-3 60081.92/40192/1-3 60091.92/40192/1-3 60101.92/40192/1-3 62001.92/10192/1-4 62011.92/20192/1-7 62021.92/20192/1-4 62031.92/30192/1-4 62041.92/40192/1-4 62051.92/40192/1-3 63001.92/30192/1-3 63011.92/40192/1-3 63021.92/40192/1-7 63031.92/40192/1-7 63041.92/40192/1-7 60111.92/50192/2-3 60121.92/50192/2-3 62061.92/50192/2-3 62071.92/50192/2-3 62081.92/60192/2-3 62091.92/60192/2-3 62101.92/60192/2-3 62111.92/60192/2-3 62121.92/70192/2-3 63051.92/60192/2-7 63061.92/60192/2-4 63071.92/60192/2-4 63081.92/70192/2-4 63091.92/70192/2-4 6310**1.92/70192/2-4 6311***1.92/70192/2-4 64031.92/60192/2-3 64041.92/70192/2-3 64051.92/70192/2-7 64061.92/70192/2-7 6407*1.92/60192/2-7 Content Sentence 1.92/1 and 1.92/2 * with support ring 6309 ** with support ring 6310 *** with support ring 6311
- Contents (Qty of pieces): 1
