Timing gear puller, VW 1.2 + 1.4 TSI
KL-0282-53 KA
/ Code no. 3411524
Timing gear puller, VW 1.2 + 1.4 TSI
KL-0282-53 KA
/ Code no. 3411524
Price on request
Product line
EAN
4046459178712
Product description

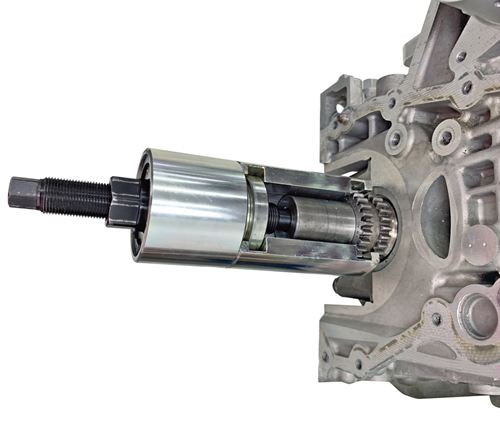

- Required for professional removal and mounting of the chain sprocket on the crankshaft.
- Time-consuming loosening and lowering of the entire vehicle engine can thus be avoided.
- The flywheel locking tool included in the scope of delivery serves as an anti-rotation device for the crankshaft, and the press ring also allows the shaft seal to be pressed into the timing cover.
-
Dimensions and weights
- Total width [mm]: 254 mm
- Total height [mm]: 89 mm
- Total length [mm]: 290 mm
- Weight [kg]: 3,5 kg
-
Scope of delivery

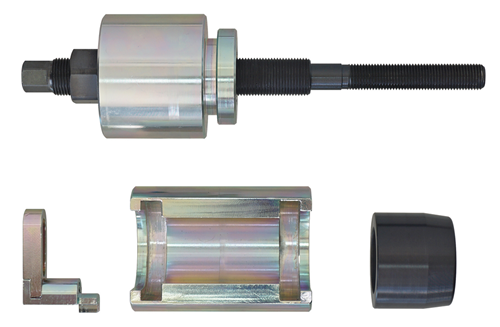

- Parts list (Text): 1x KL-0282-531 - Timing chain sprocket puller VW 1x KL-0282-532 - Flywheel locking tool 1x KL-0282-533 A - Press ring shaft sealing ring 1x KL-0282-5390 - Plastic case

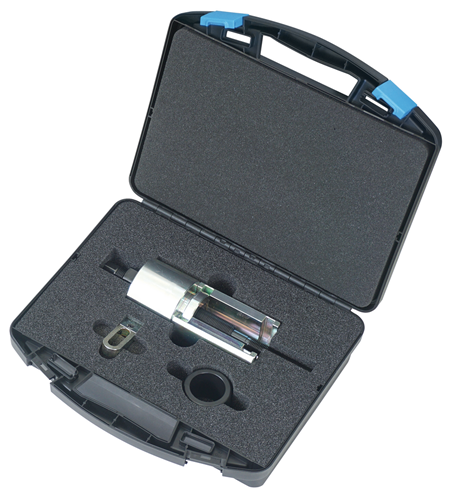

- Storage: Plastic case
- Contents (Qty of pieces): 5
-
Technical characteristics
- Diameter 1 [mm]: 65 mm
- Suitability: Audi Seat Skoda VW
- for motor type: Petrol
- Motorcodes: VW-Audi: CBZA, CBZB, CBZC, CHPA, CHPB, CJZA, CJZB, CJZC, CJZD, CMBA, CNLA, CPTA, CPVA, CPVB, CPWA, CRJA, CUKB, CUKC, CWLA, CWVA, CWVB, CXSA, CXSB, CYVA, CYVB, CZBA, CZCA, CZCB, CZDA, CZDB, CZDD, CZEA, CZTA, DGEA, DGEB, DGXA, DJKA, DJKD, DJVA, DJXA, DSJA.
- Spindle total length: 240 mm
