Ball Joint Extractor Set (with 6 Forks)
KL-0165-3 KA
/ Code no. 2801817
Ball Joint Extractor Set (with 6 Forks)
KL-0165-3 KA
/ Code no. 2801817
Price on request
Product line
EAN
4046459129547
Product description

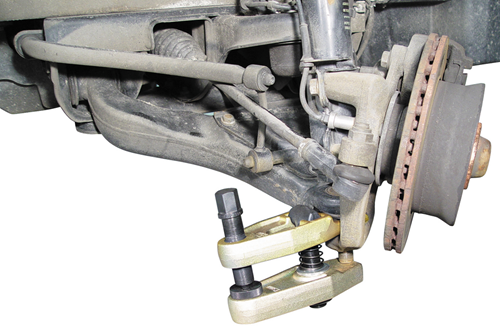

- For seperating ball joint connections on axle and steering systems.
- Advantage:
- • Variable due to exchangeable forks
- • High stability
- • Ideal release pressure point and adjustable tilting adjustment
-
Dimensions and weights
- Total width [mm]: 360 mm
- Total height [mm]: 230 mm
- Total length [mm]: 450 mm
- Weight [kg]: 15,5 kg
-
Scope of delivery
- Parts list (Text): 1x KL-0165-300 - Basic tool without fork 1x KL-0165-3001 - Fork size 3 - a=30 mm - e=80 mm - d=200 mm (results in KL-0165-30) 1x KL-0165-3101 - Fork size 3 - a=34 mm - e=80 mm - d=200 mm (results in KL-0165-31) 1x KL-0165-3201 - Fork size 3 - a=40 mm - e=80 mm - d=200 mm (results in KL-0165-32) 1x KL-0165-3301 - Fork size 3 - a=42 mm - e=80 mm - d=200 mm (results in KL-0165-33) 1x KL-0165-3401 - Fork size 3 - a=47 mm - e=80 mm - d=200 mm (results in KL-0165-34) 1x KL-0165-3501 - Fork size 3 - a=33 mm - e=80 mm - d=200 mm (results in KL-0165-35) 1x KL-0165-3090 A - Plastic Case
- Quantity adapters: 6
- Storage: Case
- Contents (Qty of pieces): 7
- Contents (parts list): 6 Forks with opening from 30 to 47 mm
-
Technical characteristics
- Suitability: universal Deutz-Fahr Ford John Deere Landini MAN Mercedes Scania Volvo VW
- Size: 3
- Width across flats [mm]: 24 mm
