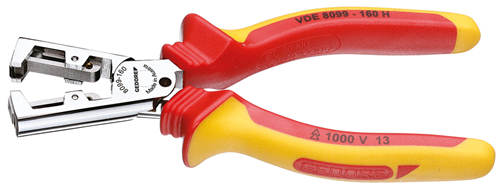

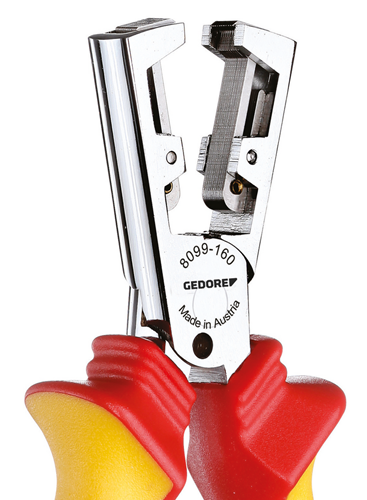

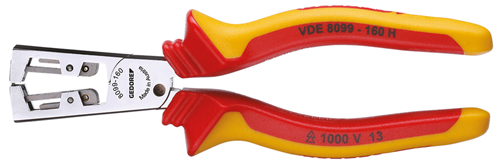

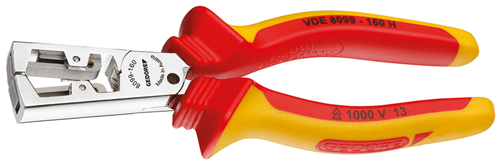

VDE Wire stripper STRIP-FIX with VDE insulating sleeves
VDE 8099-160 H
/ Code no. 1552082
VDE Wire stripper STRIP-FIX with VDE insulating sleeves
VDE 8099-160 H
/ Code no. 1552082
Price on request
Product line
EAN
4010886815984
Product description
- Self-adjusting, for wires 0.5 - 5.0 mm²
- V-shaped cutting jaws for stripping the plastic insulation of single- and multi-core conductors
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total width [mm]: 54 mm
- Total height [mm]: 27 mm
- Total length [inch]: 6.1/2
- Total length [mm]: 160 mm
- Weight [kg]: 0,211 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw length L3 [mm]: 11 mm
- Joint types: eingelegtes Gelenk
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Width of head 1 [mm]: 28,0 mm
- Head thickness [mm] T1: 46,0 mm
- Cable cross section [mm²]: 0,5-5,0 mm²
- Material: Quenched and tempered steel
- Standard: EN 60900/IEC60900
- Surface: chrome‑plated
