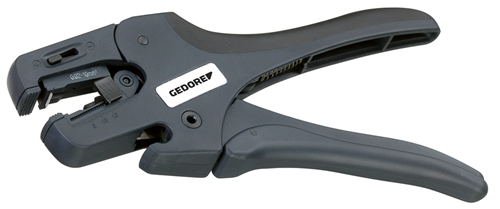

Wire stripper including module insert 8146-1
8146
/ Code no. 1830805
Wire stripper including module insert 8146-1
8146
/ Code no. 1830805
Price on request
Product line
EAN
4010886855188
Product description
- Self-adjusting cutting and stripping tool (No. 8146) for modern electrical installations and equipment circuitry (90 % of all wires can be stripped without any adjustment of the tool)
- The use of easily exchangeable module inserts allows accurate stripping of a wide range of insulation materials, including PVC and PTFE, with just one tool
- With flat blade
- Dimensions: 191 x 123 x 20 mm
- Stripping capacity:
- No. 8146-1 with flat blade: 0.02-10 mm²/AWG 34-8 (for PVC insulation)
- No. 8146-2 with circular blade: 4-16 mm²/AWG 10-5
- No. 8146-3 with V-blade: PTFE 0.1- 4 mm²/AWG 28-12 (for all insulations)
- Cutting values:
- Flexible conductors up to 10 mm²/AWG 8
- Rigid wires up to 1.5 mm² / AWG 16
-
Dimensions and weights
- Weight [kg]: 0,18 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Wire gauge AWG: 34-8
- Colour: black
- Cable cross section [mm²]: 0,02-10 mm²
- Material: Plastic
