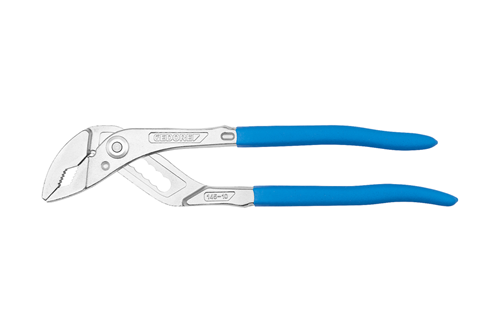

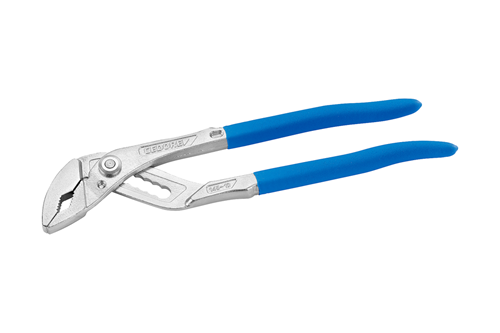

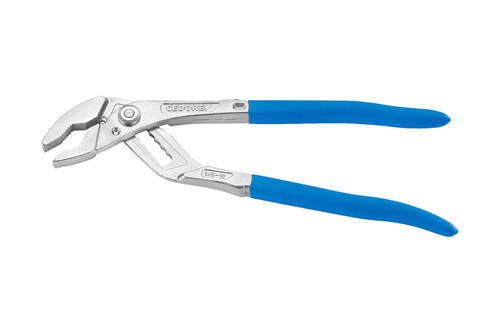

Water pump pliers 10" 7-way adjustable, dip-insulated
145 10 TC
/ Code no. 3462730
Water pump pliers 10" 7-way adjustable, dip-insulated
145 10 TC
/ Code no. 3462730
Price on request
Product line
EAN
4010886975862
Product description
- Acc. to DIN ISO 8976 Form A
- Lay-on slip joint and toothed recess
- Induction-hardened serrated faces, with protection against blocking
- Clamps automatically on pipes and nuts
- GEDORE special chrome-vanadium steel, chrome-plated
- Version C = Handles checkered
- Version JC = with 2-component handles
- TC = chrome-plated, with blue dipped handles
- No. 145 10 = 7-way adjustable, with extra narrow jaws
- No. 145 20= 11-way adjustable
- Span width 39 mm
-
Dimensions and weights
- Total width [mm]: 55 mm
- Total height [mm]: 19 mm
- Total length [mm]: 260 mm
- Weight [kg]: 0,38 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: flache Backen
- Jaw length L3 [mm]: 41 mm
- Joint types: aufgelegtes Gelenk
- Handle design: tauchisoliert
- Handle colour: blue
- Hardening process: Induction hardened
- Width of head 1 [mm]: 47,0 mm
- Head thickness [mm] T1: 7,8 mm
- Material: Chrome‑vanadium steel
- Standard: DIN ISO 8976 - Form A
- Surface: chrome‑plated
- Clamping width [inch]: 1 9/16"
- Clamping width [mm]: 39 mm
- Width of centres W4 [mm]: 8,0 mm
