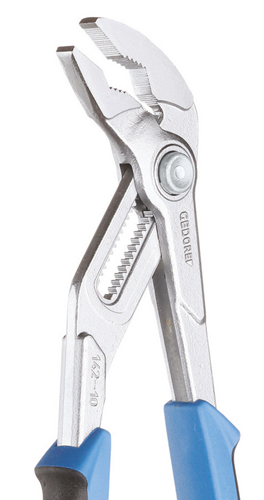

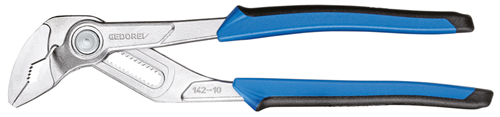

Universal pliers 10" 15-way adjustable 2C handle
142 10 JC
/ Code no. 6416340
Universal pliers 10" 15-way adjustable 2C handle
142 10 JC
/ Code no. 6416340
Price on request
Product line
EAN
4010886641637
Product description
- Acc. to DIN ISO 8976 Form C
- With push-through joint and clamping protection
- Fine adjustment by push button
- No. 142 7 = 17-way adjustable
- No. 142 10 = 15-way adjustable
- No. 142 12 = 17-way adjustable
- Push-button one-hand adjustment with large actuating surface
- Small pliers head for hard-to-access areas
- Long pliers jaws
- Offset gripping surfaces, self-clamping on nuts and tubes
- GEDORE special chrome-vanadium steel
- Induction-rehardened serrated faces
- JC = chrome-plated, with 2-component handle covers
- C = slim handle legs with forged ribbing
- TL = steel-grey, with blue dipped non-slip handles
- TC = chrome-plated, with blue dipped handles
-
Dimensions and weights
- Total width [mm]: 58 mm
- Total height [mm]: 20 mm
- Total length [mm]: 250 mm
- Weight [kg]: 0,37 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of setting positions: 15
- Design non-sparking: No
- Jaw shape [mm]: flache Backen
- Jaw length L3 [mm]: 39 mm
- Joint types: durchgestecktes Gelenk
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: blue
- Handle material: plastic
- Hardening process: Induction hardened
- Width of head 1 [mm]: 48,0 mm
- Head thickness [mm] T1: 7,5 mm
- Material: Chrome‑vanadium steel
- Standard: DIN ISO 8976 - Form C
- Surface: chrome‑plated
- Clamping width [mm]: 38 mm
