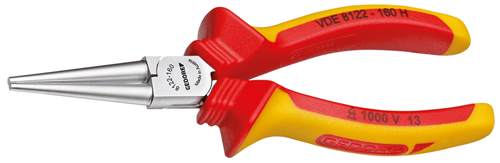

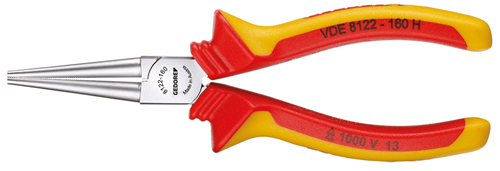

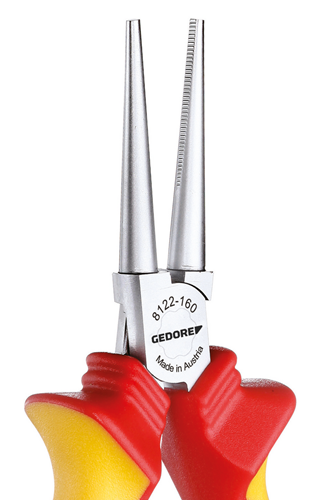

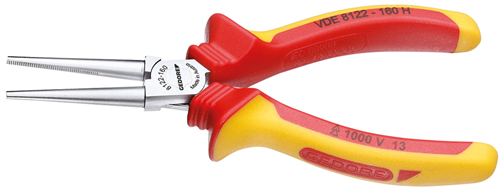

VDE round-nose pliers with casing insulation 160 mm
VDE 8122-160 H
/ Code no. 1552104
VDE round-nose pliers with casing insulation 160 mm
VDE 8122-160 H
/ Code no. 1552104
Price on request
Product line
EAN
4010886816004
Product description
- With long jaws, serrated gripping faces
- For gripping and bending
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total width [mm]: 51 mm
- Total height [mm]: 26 mm
- Total length [mm]: 160 mm
- Weight [kg]: 0,154 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

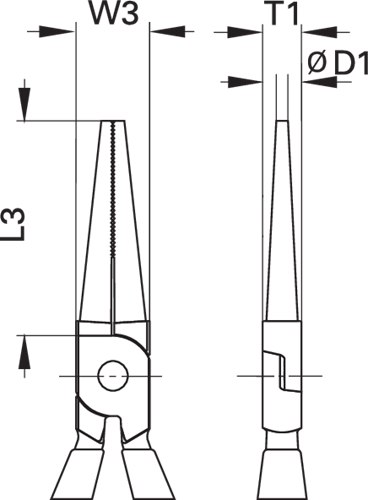

Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: runde Backen
- Jaw length L3 [mm]: 48 mm
- Joint types: eingelegtes Gelenk
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Width of head 1 [mm]: 16,5 mm
- Head thickness [mm] T1: 8,7 mm
- Material: Quenched and tempered steel
- Standard: EN 60900/IEC60900 DIN ISO 5745
- Surface: chrome‑plated
- Tip diameter: 2,5 mm
