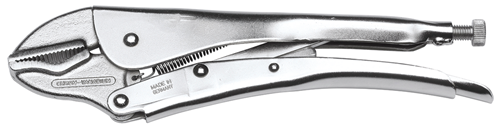

Grip wrench 11"
137 11
/ Code no. 6407270
Grip wrench 11"
137 11
/ Code no. 6407270
Price on request
Product line
EAN
4010886640722
Product description
- With adjusting screw and release lever, model 137 10 with blue dip-insulated lever
- Forged, tempered jaws and special jaw shape for secure gripping, clamping and holding
- GEDORE vanadium steel 31CrV3, zinc-plated
- Jaw body sheet steel with high strength
- Automatically welded upper jaw - absolutely firm connection with the steel sheet body
- Sophisticated jaw shape guarantees three-point support for any material cross section
- Threaded bore welded at bottom
- No widening under most extreme loading
- Safe release
- Release lever under constant pressure of special spring
-
Dimensions and weights
- Total width [mm]: 72 mm
- Total height [mm]: 19 mm
- Total length [inch]: 11"
- Total length [mm]: 260 mm
- Weight [kg]: 0,79 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Material: Steel (head) Steel sheet (handles)
- Surface: nickel‑plated
- Clamping width [inch]: 1.3/4
- Clamping width [mm]: 45 mm
