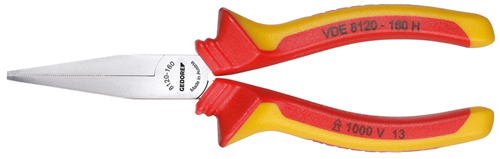

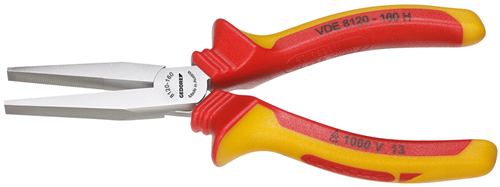

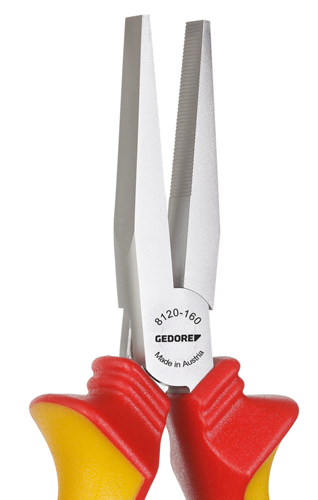

VDE flat-nose pliers with casing insulation 160 mm
VDE 8120-160 H
/ Code no. 1552090
VDE flat-nose pliers with casing insulation 160 mm
VDE 8120-160 H
/ Code no. 1552090
Price on request
Product line
EAN
4010886815991
Product description
- With long jaws, serrated gripping faces
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total width [mm]: 51 mm
- Total height [mm]: 25 mm
- Total length [mm]: 170 mm
- Weight [kg]: 0,15 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: flache Backen
- Jaw length L3 [mm]: 51 mm
- Joint types: eingelegtes Gelenk
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Width of head 1 [mm]: 16,5 mm
- Head thickness [mm] T1: 9,0 mm
- Material: Quenched and tempered steel
- Standard: DIN ISO 5745 EN 60900/IEC60900
- Surface: chrome‑plated
- Width of centres W4 [mm]: 3,4 mm
