Assembly pliers for external circlips angled 4-9 mm
8000 A 1G
/ Code no. 6700220
Assembly pliers for external circlips angled 4-9 mm
8000 A 1G
/ Code no. 6700220
Price on request
Product line
EAN
4010886670026
Product description
- For shafts without groove
- For self-locking Seeger grip rings and for self-locking Benzing clamping rings
- Similar to DIN 5254 Form A
- A 0G - A 1G = 30° angled jaws
- A 2G = straight tips
- With opening spring and adjusting screw to limit opening
- High degree of assembly reliability, the limit opening rules out any over-tensioning of the smallest of retaining rings
- Forged GEDORE chrome-vanadium special hardened and tempered steel
- Precision machined, oil hardened and annealed
- Black, with red dipped handles
-
Dimensions and weights
- Total width [mm]: 70 mm
- Total height [mm]: 11 mm
- Total length [mm]: 140 mm
- Weight [kg]: 0,098 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Joint types: aufgelegtes Gelenk
- Handle design: tauchisoliert
- Hardening process: oil-hardened and tempered

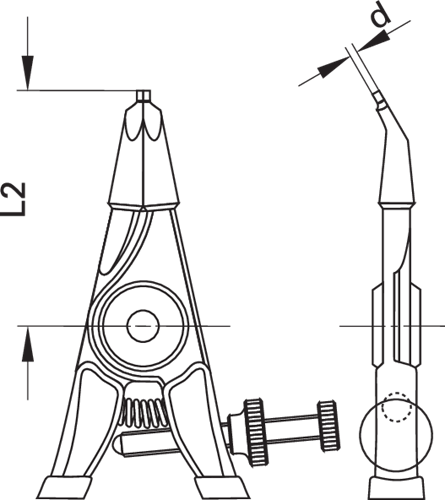

- Length of head: 40 mm
- Material: Chrome‑vanadium steel
- Opening spring present: Yes
- Tip diameter: 1,1 mm
- Shaft diameter for Benzing clamping rings: 3,0-11,0
- Shaft diameter for Seeger grip rings: 4,0-9,0
