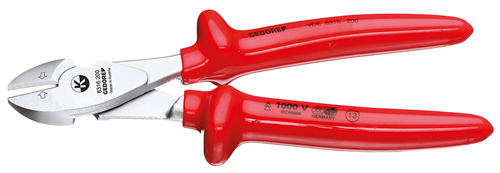

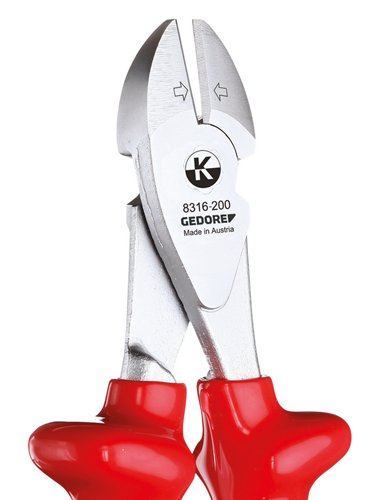

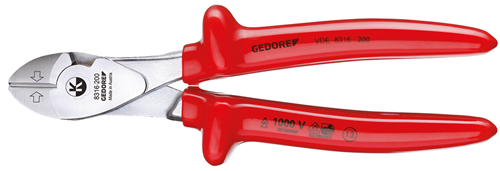

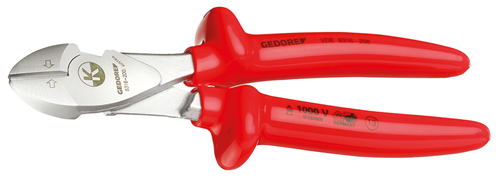

VDE power side cutters with immersion insulation 200 mm
VDE 8316-200
/ Code no. 6742570
VDE power side cutters with immersion insulation 200 mm
VDE 8316-200
/ Code no. 6742570
Price on request
Product line
EAN
4010886674253
Product description
- Good lever action for easier cutting
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
-
Dimensions and weights
- Total length [mm]: 200 mm
- Weight [kg]: 0,341 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Bevel: with
- Handle design: Tauchisolierung: 2-fach Check-Tool-Isolierung
- Hardening process: Induction hardened
- Width of head 1 [mm]: 28,0 mm
- Head height 1 [mm]: 22 mm
- Head thickness [mm] T1: 11,0 mm
- Material: Quenched and tempered steel
- Standard: DIN ISO 5749 EN 60900/IEC60900
- Surface: chrome‑plated
- Blade shape: mit Facette
- Hardness of cutting edge: 63 - 65 HRC
- Cutting edge length [mm]: 22 mm
- Cutting values: Piano wire: 2 mm / 12 AWG Hard wire: 3 mm / 9 AWG Medium hard wire: 4,2 mm / 6 AWG
