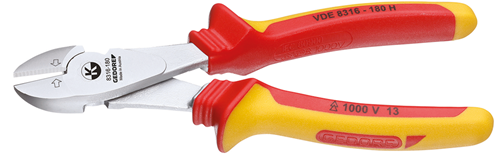

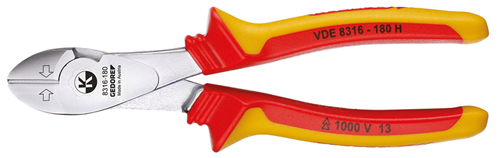

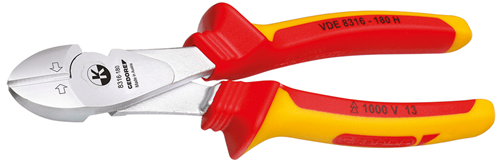

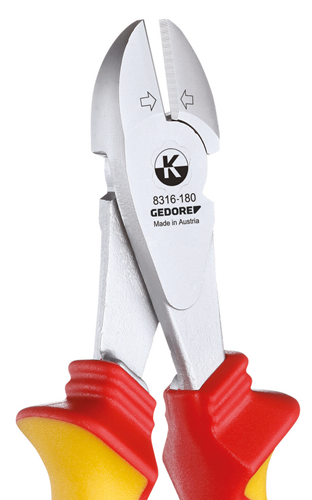

VDE power side cutters with casing insulation 180 mm
VDE 8316-180 H
/ Code no. 1550993
VDE power side cutters with casing insulation 180 mm
VDE 8316-180 H
/ Code no. 1550993
Price on request
Product line
EAN
4010886816103
Product description
- High leverage for easier work
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total width [mm]: 55 mm
- Total height [mm]: 27 mm
- Total length [mm]: 180 mm
- Weight [kg]: 0,267 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Bevel: with
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Hardening process: Induction hardened
- Width of head 1 [mm]: 26,0 mm
- Head height 1 [mm]: 22,6 mm
- Head thickness [mm] T1: 11,0 mm
- Material: Quenched and tempered steel
- Standard: DIN ISO 5749 EN 60900/IEC60900
- Surface: chrome‑plated
- Blade shape: mit Facette
- Hardness of cutting edge: 63 - 65 HRC
- Cutting edge length [mm]: 22,6 mm
- Cutting values: Piano wire: 1,8 mm / 13 AWG Hard wire: 2,7 mm / 10 AWG Medium hard wire: 3,8 mm / 7 AWG
