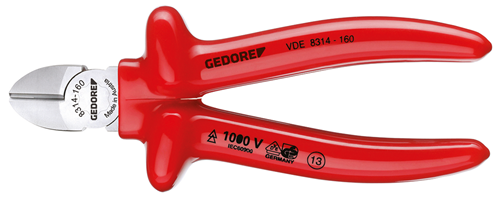

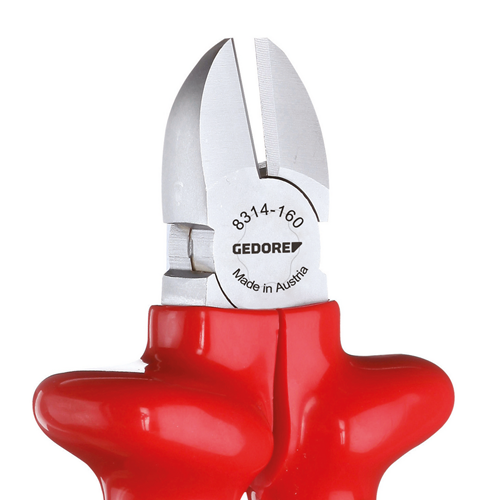

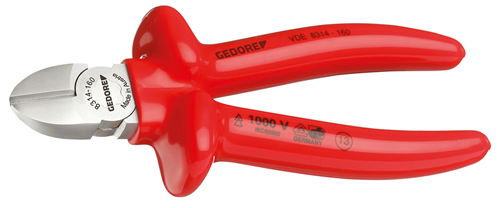

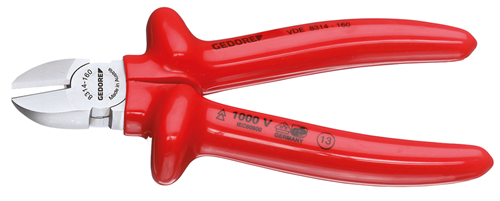

VDE side cutters with dip insulation 160 mm
VDE 8314-160
/ Code no. 6743620
VDE side cutters with dip insulation 160 mm
VDE 8314-160
/ Code no. 6743620
Price on request
Product line
EAN
4010886674369
Product description
- Acc. to DIN ISO 5749
- With slender head, ideal for confined spaces
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
-
Dimensions and weights
- Total length [mm]: 160 mm
- Weight [kg]: 0,24 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Bevel: with
- Handle design: Tauchisolierung: 2-fach Check-Tool-Isolierung
- Hardening process: Induction hardened
- Width of head 1 [mm]: 22,0 mm
- Head height 1 [mm]: 19 mm
- Head thickness [mm] T1: 10,0 mm
- Material: Quenched and tempered steel
- Standard: DIN ISO 5749 EN 60900/IEC60900
- Surface: chrome‑plated
- Blade shape: mit Facette
- Hardness of cutting edge: 63 - 65 HRC
- Cutting edge length [mm]: 19 mm
- Cutting values: Hard wire: 2 mm / 12 AWG Medium hard wire: 2,8 mm / 9 AWG Soft wire: 4 mm / 6 AWG
