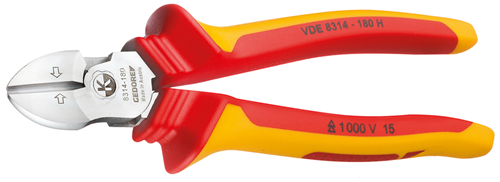

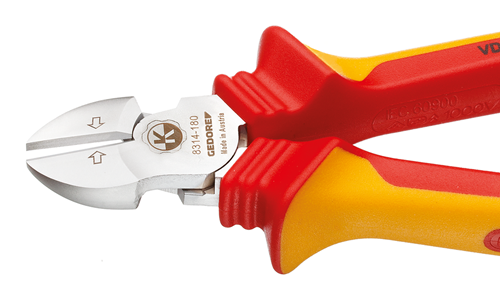

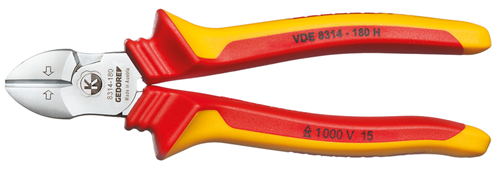

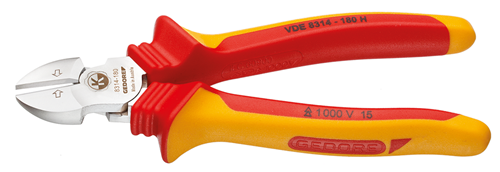

VDE power side cutters with casing insulation 180 mm
VDE 8314-180 H
/ Code no. 2910950
VDE power side cutters with casing insulation 180 mm
VDE 8314-180 H
/ Code no. 2910950
Price on request
Product line
EAN
4010886945193
Product description
- With slender head, ideal for confined spaces
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total length [mm]: 180 mm
- Weight [kg]: 0,295 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Bevel: with
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Hardening process: Induction hardened
- Width of head 1 [mm]: 26,0 mm
- Head height 1 [mm]: 25 mm
- Head thickness [mm] T1: 11,0 mm
- Material: Quenched and tempered steel
- Standard: DIN ISO 5749 EN 60900/IEC60900
- Surface: chrome‑plated
- Blade shape: mit Facette
- Hardness of cutting edge: 63 - 65 HRC
- Cutting edge length [mm]: 25 mm
- Cutting values: Hard wire: 2,5 mm / 10 AWG Medium hard wire: 3 mm / 9 AWG Soft wire: 4 mm / 6 AWG Cu cable, multi wire cross section: 5x2.5 mm² Multi-wire cable Ø: 15 mm
