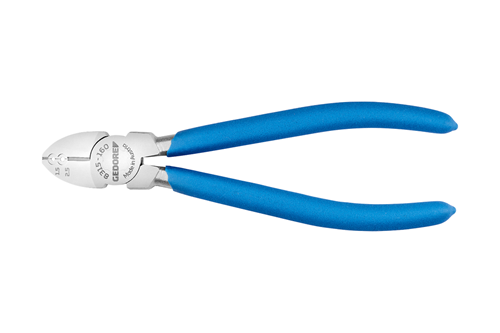

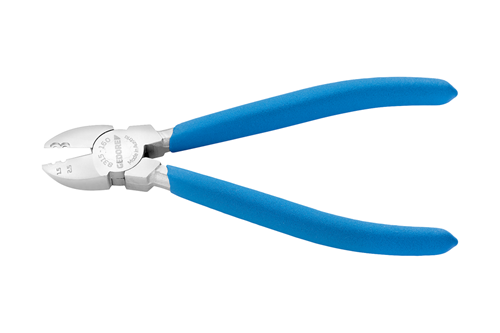

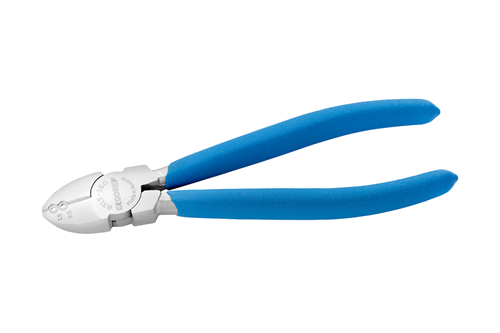

Stripping side cutters dip-insulated 160mm
8315-160 TC
/ Code no. 3463664
Stripping side cutters dip-insulated 160mm
8315-160 TC
/ Code no. 3463664
Price on request
Product line
EAN
4010886976180
Product description
- Double-function electricians’ side cutters: for cutting and stripping wire
- Stripping holes for solid and stranded conductors with 1.5 mm² and 2.5 mm² conductor cross-section
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- JC = chrome-plated, with 2-component handle covers
- TC = chrome-plated, with blue dipped handles
-
Dimensions and weights
- Total width [mm]: 55 mm
- Total height [mm]: 14 mm
- Total length [mm]: 160 mm
- Weight [kg]: 0,235 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Bevel: with
- Handle design: tauchisoliert
- Handle colour: blue
- Handle material: plastic
- Hardening process: Induction hardened
- Width of head 1 [mm]: 22,0 mm
- Head height 1 [mm]: 19 mm
- Head thickness [mm] T1: 10,0 mm
- Wire/cable diameter: 1,5 / 2,5
- Material: Quenched and tempered steel
- with cutting edge: Yes
- Surface: chrome‑plated
- Blade shape: mit Facette
- Hardness of cutting edge: 61 - 63 HRC
- Cutting edge length [mm]: 19 mm
- Cutting values: Hard wire: 1,6 mm / 14 AWG Medium hard wire: 3 mm / 9 AWG Soft wire: 5 mm / 4 AWG Cu cable, multi wire cross section: 3x2.5 mm² Multi-wire cable Ø: 10 mm
- Thickness of point: 1,0 mm
