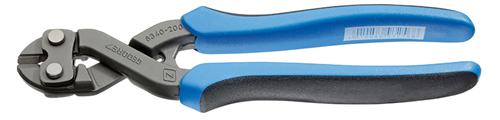

Bolt cutter, 200 mm, 2C-handle
8340 Z-200 JL
/ Code no. 2666324
Bolt cutter, 200 mm, 2C-handle
8340 Z-200 JL
/ Code no. 2666324
Price on request
Product line
EAN
4010886932568
Product description
- Compact power bolt cutter with a particularly effective cutting performance
- Optimum lever action requires less effort
- Wear-free rotating/thrust block bolt to reduce sliding friction when cutting
- Cutting edges additionally inductively hardened (63 - 65 HRC)
- Double-sided milling with additional cutting edge, in the area close to the joint, guarantees best leverage for large wire diameters
- The additional cutting edge serves as a pre-cutter for thick bolts and notches them very deeply
- In the second step, the main cutting edge cuts through the bolt completely
- Precision cutting edges for soft wire up to Ø 6.0 mm, hard wire up to Ø 5.5 mm and piano wire up to Ø 3.8 mm
- JL = steel grey, with 2-component handles
- TL = steel-grey, with blue dipped non-slip handles
- TC = chrome-plated, with blue dipped handles
-
Dimensions and weights
- Total width [mm]: 52 mm
- Total height [mm]: 21 mm
- Total length [mm]: 200 mm
- Weight [kg]: 0,415 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Colour: steel grey
- Bevel: with
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: blue
- Handle material: plastic
- Hardening process: Induction hardened
- Material: Quenched and tempered steel
- Blade shape: mit Facette
- Hardness of cutting edge: 63 - 65 HRC
- Cutting values: Piano wire: 3,8 mm / 7 AWG Hard wire: 5 mm / 4 AWG Medium hard wire: 6 mm / 3 AWG Soft wire: 6 mm / 3 AWG
