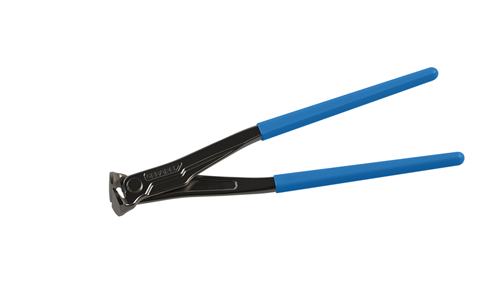

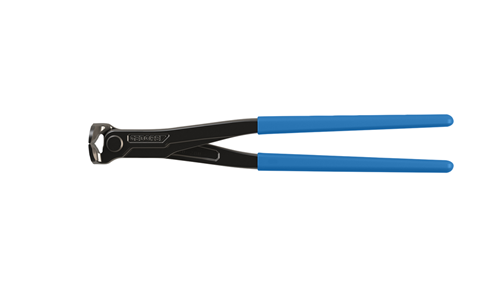

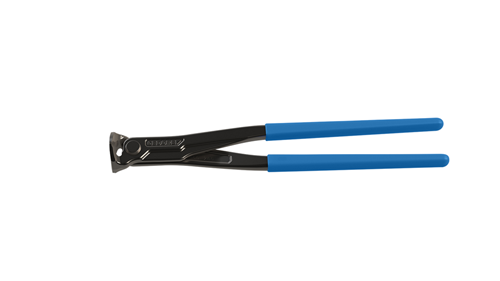

Monier pliers dip-insulated 250 mm
8380-250 TL
/ Code no. 6752100
Monier pliers dip-insulated 250 mm
8380-250 TL
/ Code no. 6752100
Price on request
Product line
EAN
4010886675212
Product description
- Acc. to DIN ISO 9242 Form A
- Heavy-duty wire braid and mesh-cutting pincers
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- For medium-hard wire 1.6 mm
- Heads polished, steel grey, with blue dipped non-slip handles (TL)
- Geometrically optimised head and handle areas for ergonomic use
- Made of quality tool steel
-
Dimensions and weights
- Total width [mm]: 48 mm
- Total height [mm]: 25 mm
- Total length [mm]: 250 mm
- Weight [kg]: 0,4 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No

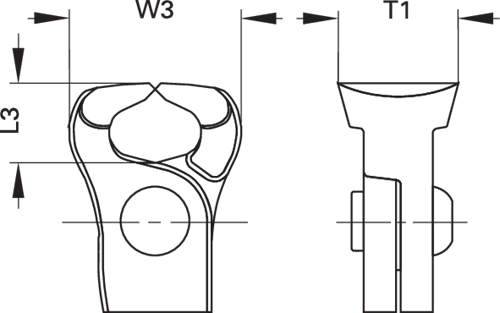

- Jaw length L3 [mm]: 16 mm
- Joint types: aufgelegtes Gelenk
- Handle design: tauchisoliert
- Hardening process: Induction hardened
- Width of head 1 [mm]: 35,0 mm
- Head thickness [mm] T1: 25,0 mm
- Material: Tool steel
- Standard: DIN ISO 9242
- Blade shape: mit Facette
- Hardness of cutting edge: 61 - 63 HRC
- Cutting edge length: 25
- Cutting values: Hard wire: 1,8 mm / 13 AWG Medium hard wire: 3,3 mm / 8 AWG Soft wire: 4 mm / 6 AWG
