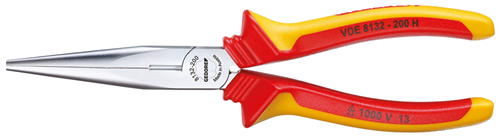

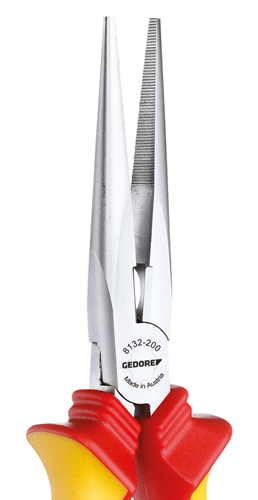

VDE Bent nose telephone pliers with VDE insulating sleeves 200 mm
SB VDE 8132-200 H
/ Code no. 1699938
VDE Bent nose telephone pliers with VDE insulating sleeves 200 mm
SB VDE 8132-200 H
/ Code no. 1699938
Price on request
Product line
EAN
4010886838808
Product description
- Long, flat-round jaws, straight gripping faces, serrated
- For holding, gripping, bending and cutting
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total length [mm]: 200 mm
- Weight [kg]: 0,22 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw length L3 [mm]: 75,7 mm
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Width of head 1 [mm]: 18,5 mm
- Head thickness [mm] T1: 9,5 mm
- Material: Quenched and tempered steel
- with cutting edge: Yes
- Standard: DIN ISO 5745 EN 60900/IEC60900
- Surface: chrome‑plated
- Hardness of cutting edge: 61 - 63 HRC
- Cutting values: Hard wire: 2,2 mm / 11 AWG Medium hard wire: 3,2 mm / 8 AWG
- Width of centres W4 [mm]: 3,7 mm
- Thickness of point: 2,8 mm
