VDE multiple pliers with sheath insulation, angled 200 mm
SB VDE 8131 AB-200 H
/ Code no. 3100383
VDE multiple pliers with sheath insulation, angled 200 mm
SB VDE 8131 AB-200 H
/ Code no. 3100383
Price on request
Product line
EAN
4010886952825
Product description
- Pliers in VDE design especially designed for the needs of electricians with the following functions:
- Cable cutter: for easy cutting of cables up to 5x2.5 mm² or Ø 12 mm

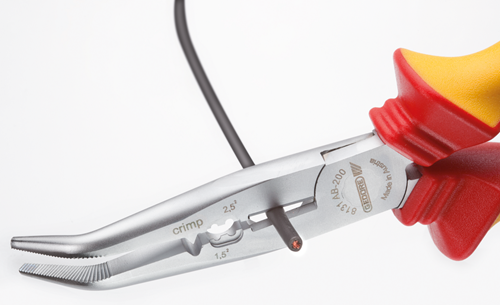

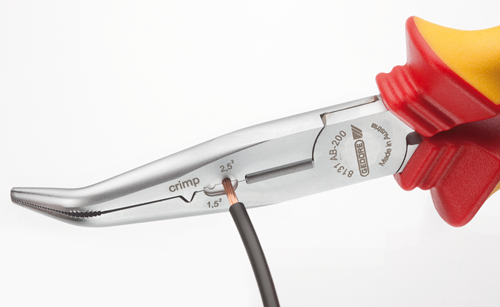

- Stripping blades: Stripping option for wires 1.5 mm² and 2.5 mm²

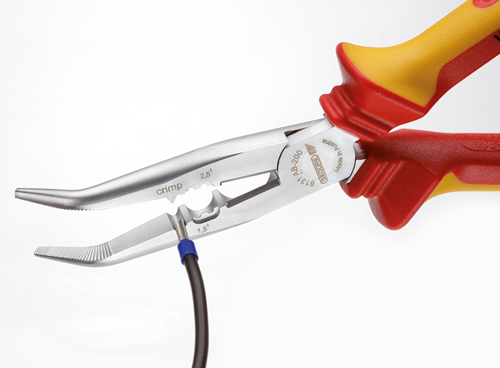

- Crimping profile: Crimping of ferrules
- Toothed gripping face: special holding capacity when pulling cables and wires during installations

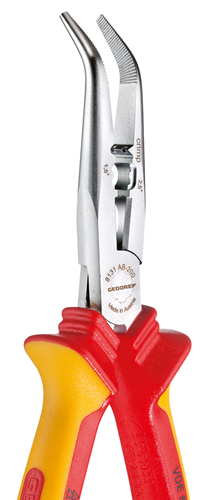

- Angled plier tip: easy on the wrist and allows full view of the workpiece
- Space-saving in the pocket, only one tool is needed
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
-
Dimensions and weights
- Total length [mm]: 200 mm
- Weight [kg]: 0,255 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Material: Quenched and tempered steel
- with cutting edge: Yes
- Standard: ähnlich DIN ISO 5745 EN 60900/IEC60900
- Surface: chrome‑plated
- Hardness of cutting edge: 61 - 63 HRC
