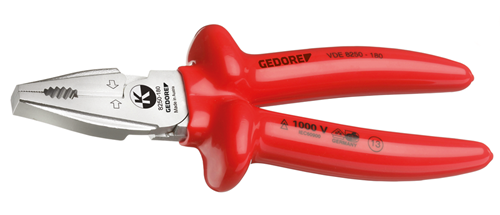

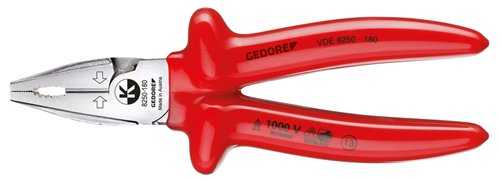

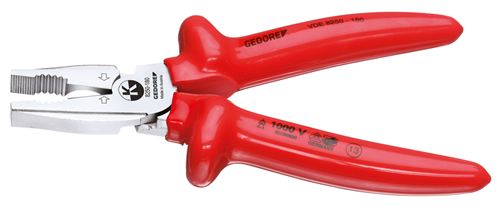

VDE power combination pliers with immersion insulation 225 mm
VDE 8250-225
/ Code no. 6720330
VDE power combination pliers with immersion insulation 225 mm
VDE 8250-225
/ Code no. 6720330
Price on request
Product line
EAN
4010886672037
Product description
- Individually tested
- For heavy continuous use
- Good lever action for easy cutting
- For round and flat material
- Extra long blades
- Induction-hardened precision cutting edges, hardness 62 - 64 HRC
- For all wire types including piano wire, 1.6 mm
- Serrated gripping faces
- Inserted joint
- High cutting performance with guaranteed 35% less effort
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed, chrome-plated
-
Dimensions and weights
- Total length [mm]: 225 mm
- Weight [kg]: 0,485 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: flache Backen
- Jaw length L3 [mm]: 42 mm
- Joint types: eingelegtes Gelenk
- Handle design: Tauchisolierung: 2-fach Check-Tool-Isolierung
- Hardening process: Induction hardened
- Width of head 1 [mm]: 27,7 mm
- Head thickness [mm] T1: 13,0 mm
- Material: Quenched and tempered steel
- Standard: EN 60900/IEC60900 DIN ISO 5746
- Blade shape: mit Facette
- Hardness of cutting edge: 62 - 64 HRC
- Cutting values: Piano wire: 2,5 mm / 13 AWG Hard wire: 2 mm / 12 AWG Medium hard wire: 4 mm / 6 AWG Soft wire: 6 mm / 3 AWG Cu cable, multi wire cross section: 25 mm² Multi-wire cable Ø: 14 mm
- Width of centres W4 [mm]: 6,0 mm
