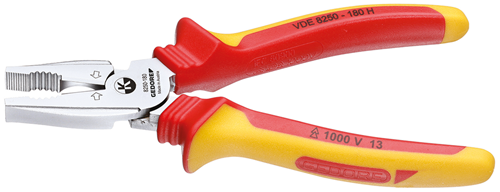

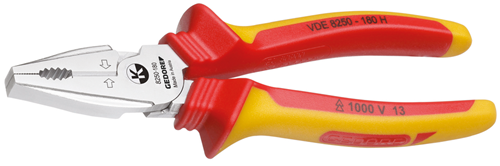

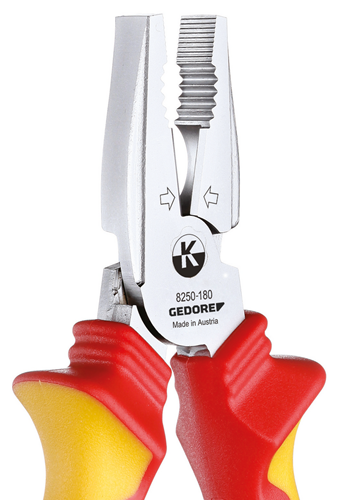

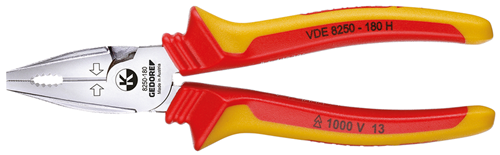

VDE power combination pliers with sleeve insulation 160 mm
VDE 8250-160 H
/ Code no. 1550942
VDE power combination pliers with sleeve insulation 160 mm
VDE 8250-160 H
/ Code no. 1550942
Price on request
Product line
EAN
4010886816059
Product description
- Individually tested
- For heavy continuous use
- Good lever action for easy cutting
- For round and flat material
- Extra long blades
- Induction-hardened precision cutting edges, hardness 62 - 64 HRC
- For all wire types including piano wire, 1.6 mm
- Serrated gripping faces
- Inserted joint
- High cutting performance with guaranteed 35% less effort
- Legs VDE insulated up to 1000 V, according to EN 60900/IEC 60900, 2-component handle protection sleeves
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed, chrome-plated
-
Dimensions and weights
- Total width [mm]: 55 mm
- Total height [mm]: 27 mm
- Total length [mm]: 160 mm
- Weight [kg]: 0,228 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Design non-sparking: No
- Jaw shape [mm]: flache Backen
- Jaw length L3 [mm]: 35 mm
- Joint types: eingelegtes Gelenk
- Handle available: Yes
- Handle design: 2K-Griffhüllen VDE isoliert bis 1000 V
- Handle material: plastic
- Hardening process: Induction hardened
- Width of head 1 [mm]: 22,8 mm
- Head thickness [mm] T1: 10,4 mm
- Material: Quenched and tempered steel
- Standard: EN 60900/IEC60900 DIN ISO 5746
- Blade shape: mit Facette
- Hardness of cutting edge: 62 - 64 HRC
- Cutting values: Piano wire: 1,6 mm / 14 AWG Hard wire: 2 mm / 12 AWG Medium hard wire: 3,1 mm / 8 AWG Soft wire: 4 mm / 6 AWG Cu cable, multi wire cross section: 16 mm² Multi-wire cable Ø: 10 mm
- Width of centres W4 [mm]: 5,8 mm
