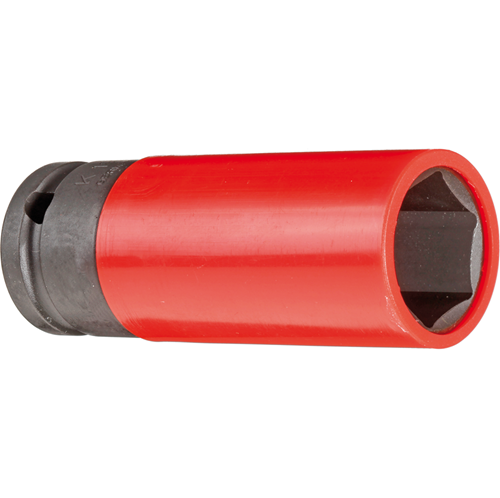

Impact socket 1/2" with protective sleeve 21 mm
R63042116
/ Code no. 3300587
Impact socket 1/2" with protective sleeve 21 mm
R63042116
/ Code no. 3300587
Price on request
Product line
EAN
4060833005876
Product description
- Specially for fitting / removing wheels of vehicles
- Plastic sleeves for damage-free work on aluminium wheel rims
- Colour coding for ease in identifying the right size
- Machine-operated, fixing with safety ring / pin
- Phosphated surface
- Square drive as per DIN 3121 - G 12,5, ISO 1174
- Design according to DIN 3129, ISO 2725-2
- Chrome-molybdenum steel
-
Dimensions and weights
- Total width [mm]: 31 mm
- Total height [mm]: 31 mm
- Total length [mm]: 86 mm
- Weight [kg]: 0,24 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Actuation type: maschinenbetätigt
- Working length: 85,0 mm
- Insert-Ø 1: 30,8 mm
- Insert-Ø 2: 30,0 mm
- Insertion depth 1: 20,0 mm
- Insertion depth 2: 16,0 mm
- Colour: red
- Material: Chrome‑molybdenum steel
- Standard: DIN 3121 - G 12,5 ISO 1174 DIN 3129 ISO 2725-2
- Surface: phosphated
- Test torque (min.) [Nm]: 650 Nm
- Width across flats 1 [mm]: 21
- Safety: Sicherungsring und -stift
