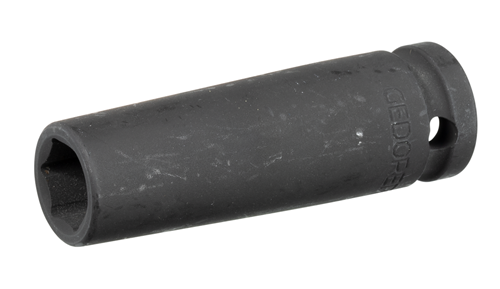

Impact socket 1/2" hex 14 mm
R63001416
/ Code no. 3300544
Impact socket 1/2" hex 14 mm
R63001416
/ Code no. 3300544
Price on request
Product line
EAN
4060833005449
Product description
- Machine-operated, fixing with safety ring / pin
- Phosphated surface
- Design according to DIN 3129, ISO 2725-2
- Square drive as per DIN 3121 - G 12,5, ISO 1174
- Chrome-molybdenum steel
-
Dimensions and weights
- Total width [mm]: 25 mm
- Total height [mm]: 25 mm
- Total length [mm]: 78 mm
- Weight [kg]: 0,185 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Actuation type: maschinenbetätigt
- Working length: 78,0 mm
- Insert-Ø 1: 21,5 mm
- Insert-Ø 2: 25,0 mm
- Insertion depth 2: 16,0 mm
- Material: Chrome‑molybdenum steel
- Standard: DIN 3129 ISO 2725-2 DIN 3121 - G 12,5 ISO 1174
- Surface: phosphated
- Test torque (min.) [Nm]: 325 Nm
- Width across flats 1 [mm]: 14
- Safety: Sicherungsring und -stift
