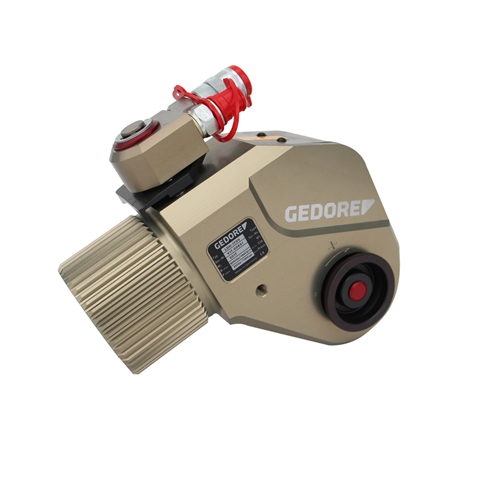

Hydraulic wrench type LDH-100V
LDH-100V
/ Code no. 15600.002
Hydraulic wrench type LDH-100V
LDH-100V
/ Code no. 15600.002
Price on request
Product line
Product description
- Quick-change mechanism for a lightning-fast transfer of the reaction arms
- Pressure bolt technology for easy repositioning of the drive square when changing the direction of rotation
- High pressure couplings 360° rotatable in vertical plane
- Integrated pressure relief valve in the hydraulic connection
- Extra large hydraulic bores for minimum system heating
-
Dimensions and weights
- Total width [mm]: 84 mm
- Weight [kg]: 7,8 kg
-
Scope of delivery
- Parts list (Text): Device incl. drive square and counter bearing, tool case and operating instructions.
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive square inch: 1.1/2"
- Torque (max.) [lbf·ft]: 7300 lbf·ft
- Torque (max.) [Nm]: 10000 Nm
- Torque (min.) [lbf·ft]: 370 lbf·ft
- Torque (min.) [Nm]: 500 Nm
- Casing radius from square centre: 39 R
- Overall length (LDH with reaction arm type L(LM)/S(LM)) [mm]: Typ L (LM) 233 mm Typ S (LM) 292 mm
- Total length square [mm]: 39 mm
- Height of counter bearing [mm]: 13 mm
- Height of hydraulic connection [mm]: 37
- Height of reaction arm to centre of housing [mm]: 130 mm
- Height square centre to hydraulic connection [mm]: 115 mm
- Length of reaction arm type L(LM)/S(LM) [mm]: Typ L (LM) 105 mm Typ S (LM) 99 mm
- Length square centre to beginning of reaction arm type L(LM)/S(LM) [mm]: Typ L (LM) 85 mm Typ S (LM) 150 mm
