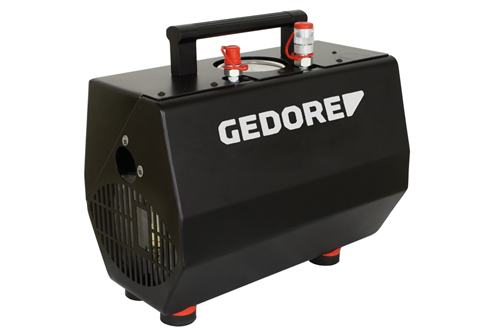

Hydraulikaggregat Type LHU-40 M
LHU-40 M
/ Code no. 20925.000
Hydraulikaggregat Type LHU-40 M
LHU-40 M
/ Code no. 20925.000
Price on request
Product line
Product description

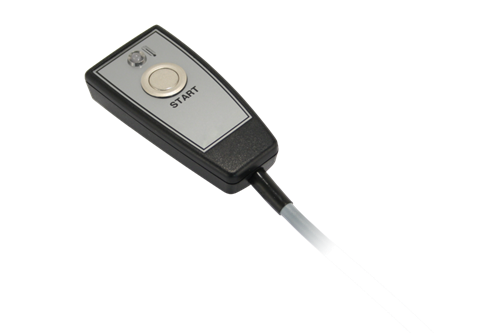

- The classic manual control causes a forward stroke of the hydraulic wrench with every keystroke. The return stroke is automatic.
- One-hand operation

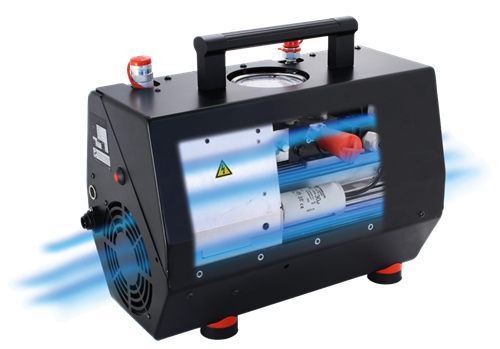

- With new type of cooling air duct
- Completely closed protective housing
-
Dimensions and weights
- Total width [mm]: 270 mm
- Total height [mm]: 400 mm
- Total length [mm]: 480 mm
- Weight [kg]: 33 kg
-
Scope of delivery
- Parts list (Text): The hydraulic unit is delivered oil-filled and ready for use.
- Contents (Qty of pieces): 1
-
Technical characteristics
- Connection voltage [Hz]: 50
- Supply voltage V: 230 V
- High pressure l/min [bar]: 0,7/800
- Low pressure l/min [bar]: 3,1/320
- Tank size [l]: 4 l
