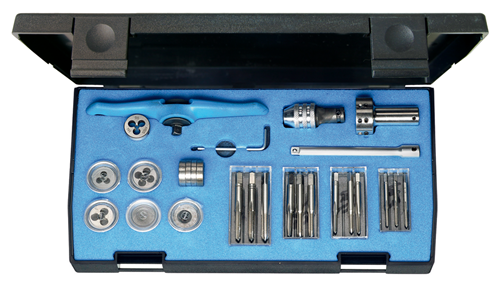

Thread cutting set for female/male thread
8553
/ Code no. 1939068
Thread cutting set for female/male thread
8553
/ Code no. 1939068
Price on request
Product line
EAN
4010886869734
Product description
- In plastic box
- Dimensions: 275 x 150 x 42 mm
- For internal thread M3 - M6
- For external threads M3 - M6, max. 40 mm long
- Ratchet drive system with extension unit
- Additional guide sleeve for dies to ensure accurately aligned thread cutting along the bar axis, with swarf collector
- Power tools:
- Ratchet with extension
- Tools for external threads:
- Die holder with guide discs and dies M3 - M6
- Die holder with guide discs and dies M3 - M6
- Quick acting chuck with tap M3 - M6
- Accessories:
- Fastening screws and angle screwdrivers
-
Dimensions and weights
- Total width [mm]: 150 mm
- Total height [mm]: 42 mm
- Total length [mm]: 275 mm
- Weight [kg]: 0,51 kg
-
Scope of delivery
- Parts list (Text): Cross handle ratchet 2093 U-3 T Offset screwdriver 2 mm Extension 1/4". Die holder Clamping head tap holder Grub screw M4x6 Washer Guide disk M3 M4 M5 M6 Die M3 M4 M5 M6 Tap M3 M4 M5 M6
- Storage: Plastic case
- Contents (Qty of pieces): 1
-
Technical characteristics
- appropriate for: Internal threads M3 - M6 and external threads M3 - M6, max. 40 mm long
