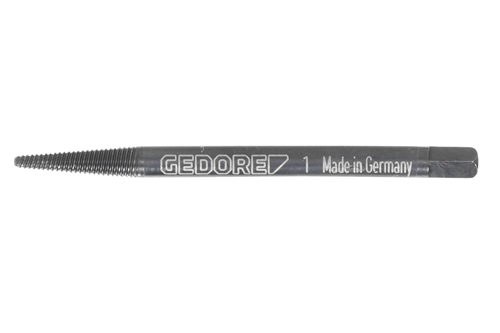

Screw extractor 1.4-3.6mm M3-M6
8551 1
/ Code no. 6758490
Screw extractor 1.4-3.6mm M3-M6
8551 1
/ Code no. 6758490
Price on request
Product line
EAN
4010886675847
Product description
- Chrom-vanadium-steel, 54 HRC
- Operation:
- Drill a central hole into the broken bolt
- Turn the bolt extractor to the left into this hole until it grips and removes the bolt (penetrating oil may be necessary!)
- Select screw extractors as large as possible
-
Dimensions and weights
- Total width [mm]: 3 mm
- Total height [mm]: 3 mm
- Total length [mm]: 50 mm
- Weight [kg]: 0,005 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 2,7 mm
- Bore Ø [mm]: 1,8 mm
- Diameter range [mm]: 1,4 - 3,6 mm
- for thread (metric): M3 - M6
- for thread (inch): 1/8" - 1/4"
- Hardness [HRC]: 54 HRC
- Material: Chrome‑vanadium steel
