Double flare set 4.75-10mm 3/16"-3/8"
1101-234013
/ Code no. 4662980
Double flare set 4.75-10mm 3/16"-3/8"
1101-234013
/ Code no. 4662980
Price on request
Product line
EAN
4017981234047
Product description
- For precision flanges according to DIN 74234
- For brake lines, coolant lines, hydraulic and pneumatic pipes with a wall thickness of 0.7 to 1.0 mm
- Body in tempered cast iron GTW 40
- Painted blue
- Complete set for metric and/or inch pipes
- With pipe deburring reamer 4-32 mm Ø and miniature pipe cutter 4-16 mm Ø

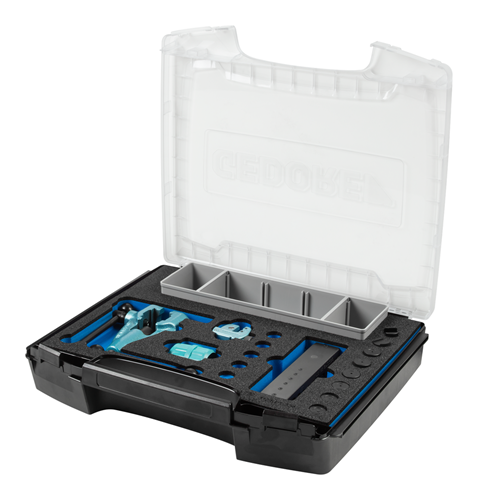

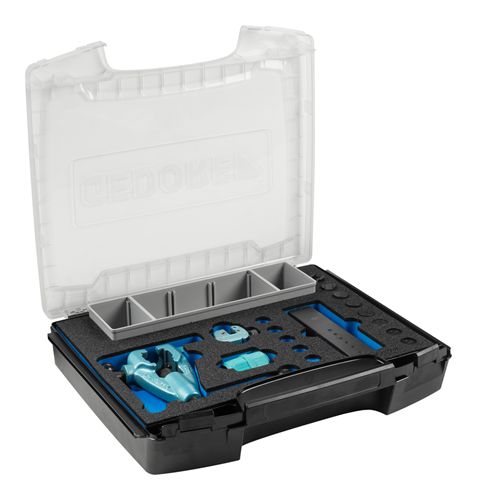

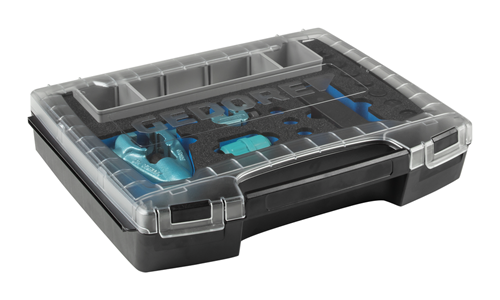

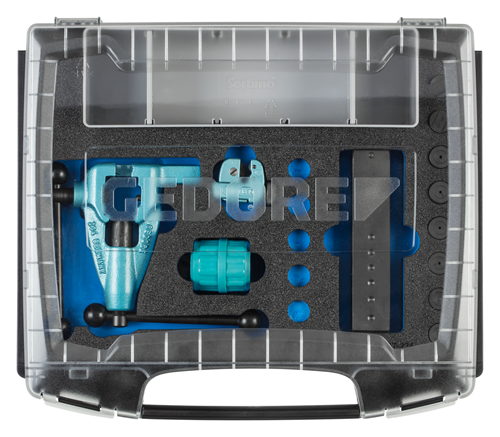

- In GEDORE i-BOXX® 72 No. 1101 L
- Dimensions: W 367 x D 316 x H 72 mm
-
Dimensions and weights
- Total width [mm]: 367 mm
- Total height [mm]: 72 mm
- Total length [mm]: 316 mm
- Weight [kg]: 4,2 kg
-
Scope of delivery

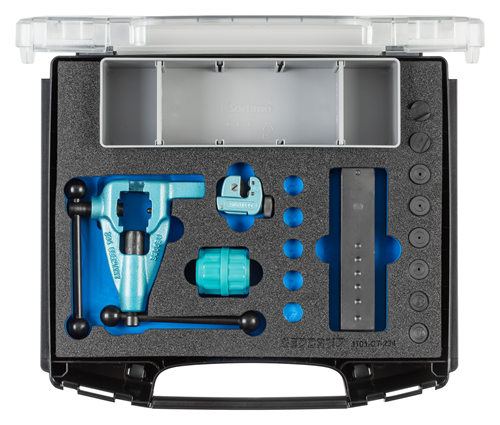

- Parts list (Text): for metric + inch pipes 1 basic frame No. 234000 2 clamping jaws No. 234101 + 234102 6 cones 4,75-10 mm No. 234204-234210 4 cones 3/16-3/8" No. 234303-234306 3 cones No. 234790 + 234801-802 1 miniature pipe cutter 4-16 mm Ø No. 231000 1 pipe deburring reamer Ø 4-32 mm No. 232001 1 GEDORE i-BOXX® 72 No. 1101 L
- Contents (Qty of pieces): 18
-
Technical characteristics
- Flanging: metrisch & zöllig
- for flanging according to DIN 74234: Yes
