Double ended socket spanner solid hexagon 16x17 mm
626 16X17
/ Code no. 6526280
Double ended socket spanner solid hexagon 16x17 mm
626 16X17
/ Code no. 6526280
Price on request
Product line
EAN
4010886652626
Product description
- Similar to DIN 896, Form A, ISO 2236, ISO 1085
- With hexagon shaft and holes for turning, either with a spanner or a tommy bar (626 S / 26 RS-626 S, see table, please order separately)
- Sizes 6x7 and 8x9 mm with no hole
- Vanadium steel 31CrV3, chrome-plated
-

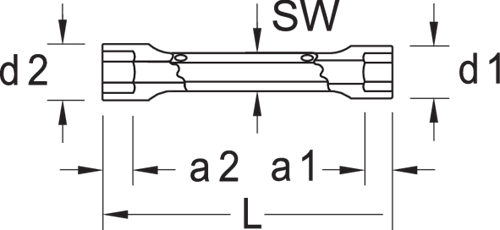

Dimensions and weights
- Total length [mm]: 155 mm
- Weight [kg]: 0,189 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector hexagon [metric]: 16,0 mm
- Diameter 1 [mm]: 22,0
- Insertion depth 1: 13,0 mm
- Insertion depth 2: 14,0 mm
- Recommended accessories: 626 S 2 Stepped pivot pin 240 mm long, Ø 6.7–11 mm
- Diameter of head 1: 22 mm
- Diameter of head 2: 23 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: ähnlich DIN 896 - Form A ISO 2236 ISO 1085
- Surface: chrome‑plated
- Width across flats 1 [mm]: 16 x 17
